Zaptec Go - 22 kW - Tibber Pulse Included - type 2 socket - EV charger

Zaptec Go including Tibber Pulse

The Zaptec Go is a compact charger measuring only 24 x 18 cm of sleek Scandinavian design. Features a charging capacity of up to 22 kW, via a type 2 socket. Easy to pair with your dynamic energy contract from Tibber. Anytime and anywhere online via Wi-Fi or 4G, using the Zaptec APP. Dynamic load balancing and RFID locking are optional. Suitable for business settlement and all charge cards. A Norwegian quality product with a 5-year warranty.

• This wallbox is suitable for all hybrid and electric cars with a type 2 plug.
• Maximum charging capacity: 22 kW / 3 x 32A
• Suitable for business and private use
• Dynamic load balancing (including via the Tibber Pulse); this means the wallbox automatically takes household/company power consumption into account, thus preventing overloading.
• Only charge your self-generated solar power via the Tibber Pulse.
• Free Zaptec app; this app allows you to remotely control and monitor/read your Zaptec Go charging station. Via the app, you can use the following functions, among others:
  - Gain insight into your charging session and monitor speed
  - Track your charging history
  - Lock the cable in the charger
  - Control accessibility for friends and/or family.
• Easily charge your car with solar power from solar panels or other renewable sources.
• This wallbox features a socket connection for a type 2 plug.
• Features a "lock function", making the charger also usable with a fixed charging cable.
• Includes DC 6mA earth fault protection, protection against over -& underloading, overheating and short circuit.
• Plug & Charge or authorisation via RFID security; to prevent unauthorised use.
• Power Sharing; possibility to connect several (3 pieces) Easee Charge Lite charging stations to one connection.
• LED status indication; the charging status is displayed via the RGBW LED circle on the front of the Zaptec Go.
• Free back office choice (sim-lock free).
• Communication protocol Central System: OCPP 1.6J cloud-to-cloud
• Wi-Fi and 4G connectivity.
• Dimensions: 24.2 x 18 x 7.5 (h x w x d)
• Weight: 1.3 KG
• Made of plastic in the colour asphalt black.
• This wallbox comes with a multilingual installation and user manual as standard.

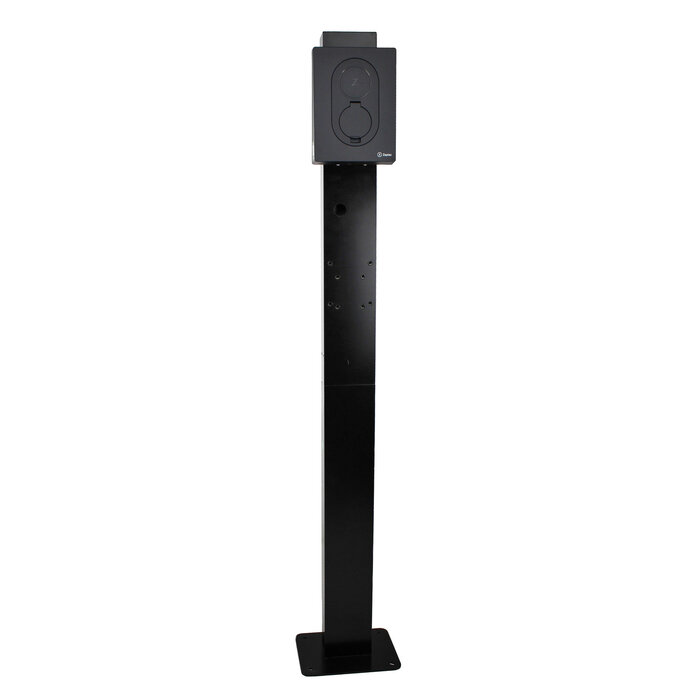

  Wall and pole mounting possible.
• Easy to install due to the plug-and-play design of the Zaptec Go.
• Degree of protection IP54 / IK8: suitable for outdoor use
• European A-quality; a solid and high-quality Norwegian product.
• 5-year warranty.

Zaptec Go 22 kW EV Charger installation

When installing a Wallbox Pulsar 11 kW EV charger, you actually have 2 choices;
1) You can install the Easee Charge Lite 11 kw ev charger yourself
2) Let a charging station-installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, you will need a power cable for this 11 kw charging station. In this case, that is a 5x2,5mm2 YMVK cable for inside / in conduit or a 4x2,5mm2 YMVK-as ground cable for outside.
Have you also checked whether you still have enough space in your fuse box? The earth leakage circuit breaker takes up 4 modules, as does the Easee Charge Lite, so an expansion box is often required.
For specific charging station installation instructions, please refer to the manual(s) below.

Want to know more about the Zaptec Go EV Charger?

- Installation manual (in English)
- User manual (in English)
- Datasheet (in English)
- EU Declaration of Conformity
- Zaptec Portal login

You can find the Zaptec App here:
