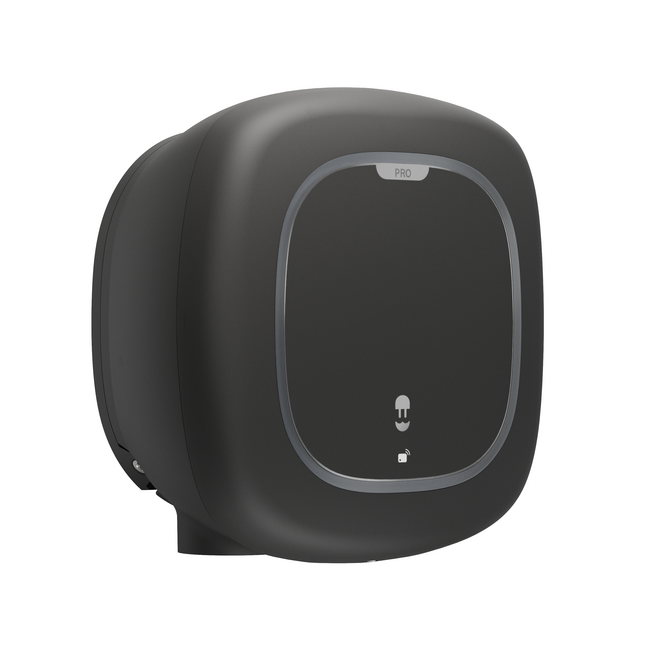

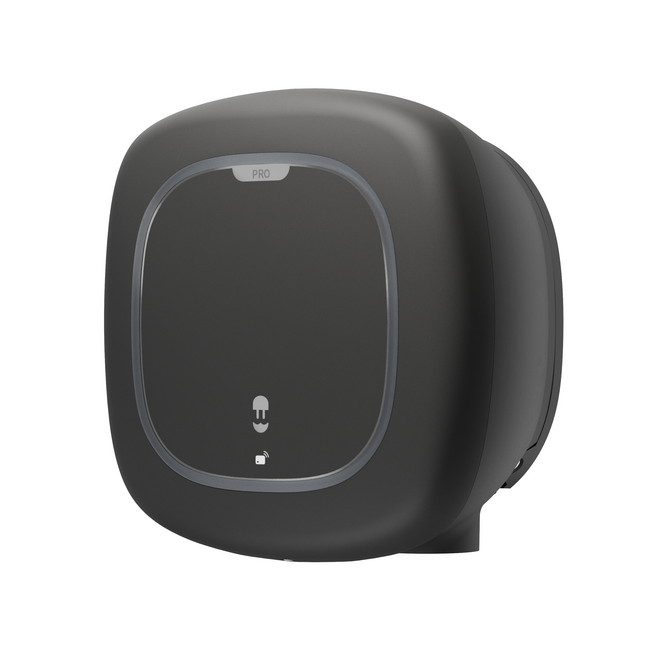

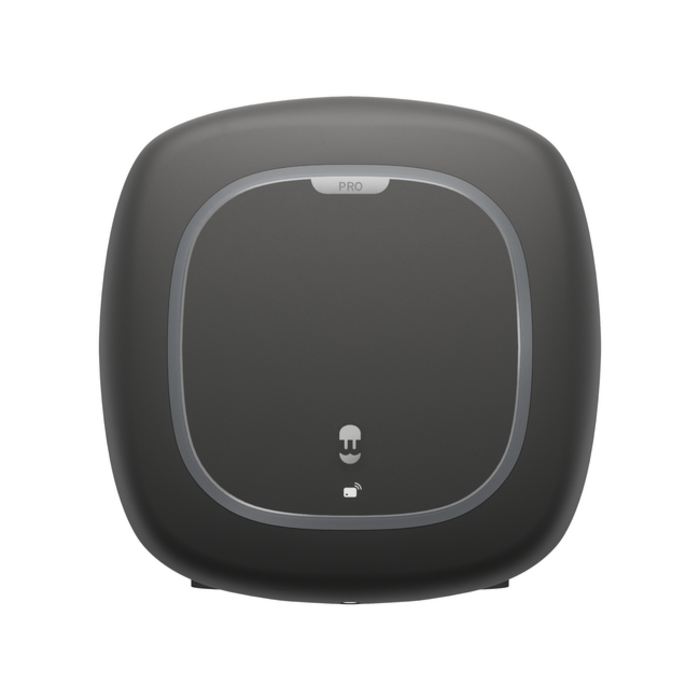

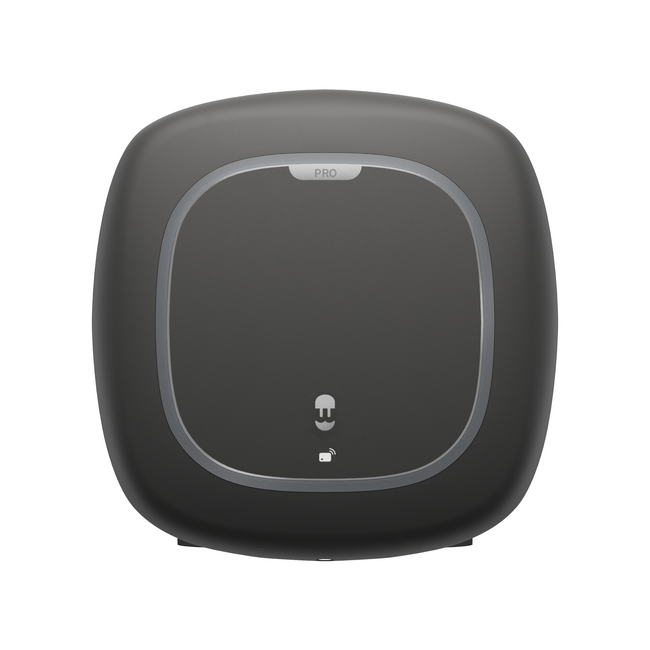

Wallbox Pulsar Pro 22 kW - type 2 - 5 meter - EV Charger
- Very compact size
- OCPP for communication with a backend system
- Use surplus solar energy to charge your car (*power boost required)
- Included MyWallbox Business license
- Does not have dynamic load balancing as standard
- Power Boost required for many functions
- Mediocre service
The Wallbox Pulsar Pro is the successor to the successful Pulsar Plus. Its compact size with sleek design makes this EV charger extra attractive. Equipped with a charging capacity of up to 22 kW and standard with a 5 meter charging cable with type 2 plug. The Pulsar Pro is standard equipped with 4G and comes with a free MyWallbox Business license. There is also a clear app to control the EV charger. Dynamic load balancing and connection to solar panels are possible via the optional Wallbox Power Boost. In addition, the wallbox can be linked to E-Flux, Maxem or other providers to enable business settlement.
- This wallbox is suitable for all hybrid and electric cars with a type 2 plug.
- Adjustable charging power both on 1 and 3 phase. Maximum charging capacity: 22 kW / 3 x 32A
- Suitable for business and private use.
- Dynamic load balancing (optional via de Power Boost); the wallbox automatically takes into account the power consumption of the household/company, thus preventing overloading.
- Free MyWallbox Business License; this portal allows you to remotely control, monitor and read your Wallbox Pulsar Pro. Through the portal you can use the following functions, among others:
- Gain insight into your charging session and monitor speed
- Manage multiple users, chargers and locations

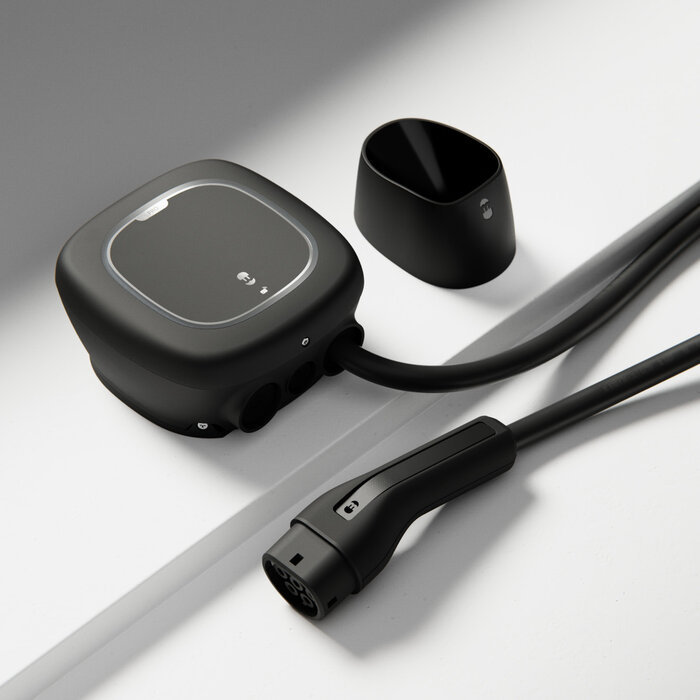

- Make your charging stations public in order to charge for each charging session - This wallbox comes with a 5 meter charging cable with a type 2 plug.
- Includes DC 6mA ground fault protection, protection against over -& undercharging, overheating and short circuit.
- Eco-Smart function enables connection to solar panels. Take full advantage of your own solar panels (* Power Boost required).
- Plug & Charge; ensures fast start of charging session after plugging in.

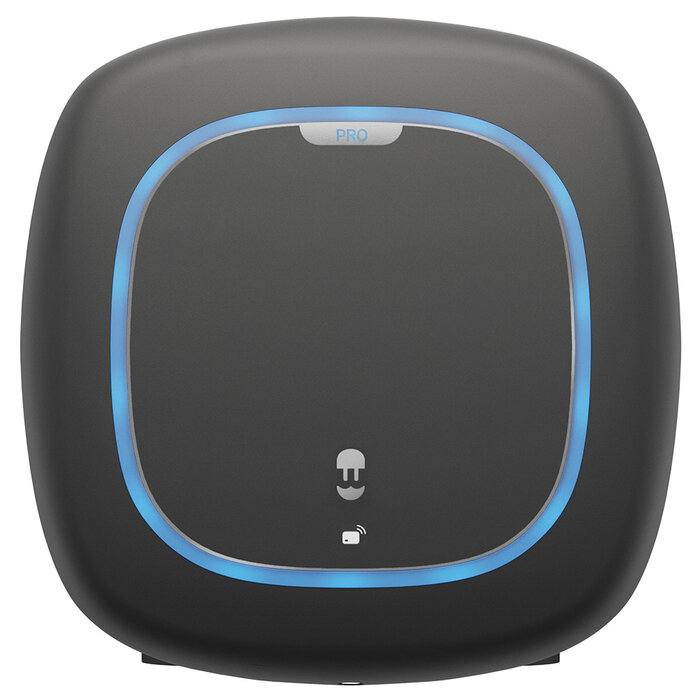

- LED status indication: the charging status is displayed via the LED circle on the front of the Wallbox. LED light can be optionally turned off.
- Improved Power Sharing allowing up to 100 Pro chargers to be linked.
- Internal power meter with over 98% measurement accuracy (error <2%).
- Free back office choice (sim-lock free). For example suitable for E-Flux or Maxem.
- Communication protocol Central System: OCPP 1.6J cloud-to-cloud.
- Bluetooth, WiFi and 4G connection.
- Dimensions: 19.8 x 20.1 x 9.9cm (h x w x d)
- Weight: 1.3 KG without cable
- Made of plastic in the color black/gray.
- This wallbox comes standard with a multilingual installation and user manual.

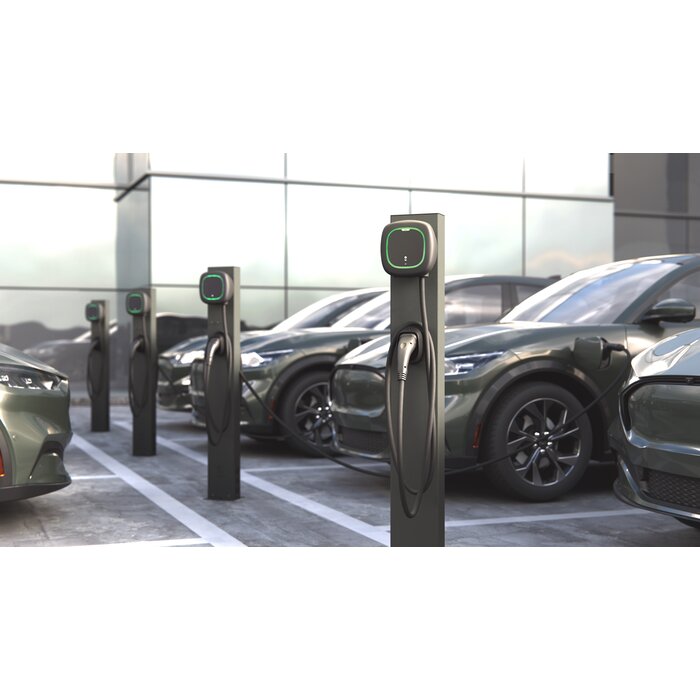

- Wall and pole mounting possible.
- Degree of protection IP55 / IK10: suitable for outdoor use.
- European A-quality; a solid and high-quality Spanish product
- 3-year warranty
Wallbox Pulsar Pro 22 kW installation
When installing a EV charger, you actually have 2 choices;
1) You can install the Wallbox Pulsar Pro EV charger yourself
2) Let a EV charger installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, for this 22 kW charging station, use a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside. Besides the right power cable, you will also need a data cable for this charging station if you use the Wallbox Power Boost for dynamic load balancing. Have you also checked whether you still have enough space in your fuse box? This is because the earth leakage circuit breaker takes up 4 modules, as does the power booster, so an expansion box is often needed.
For specific charging station installation instructions, please refer to the manual(s) below.
Want to know more about the Wallbox Pulsar Pro?
- Installation manual (In English)
- Datasheet (In English)
- Power Boost manual (In English)
- MyWallbox Business login

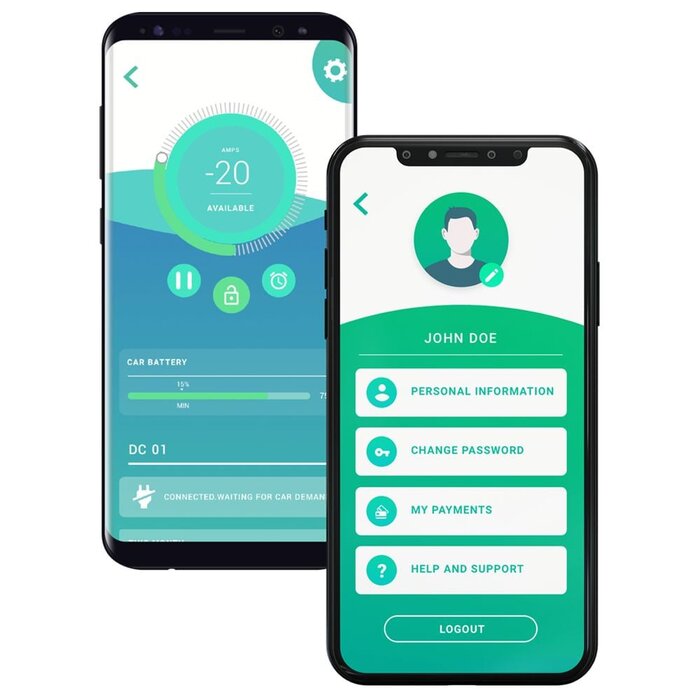

You can find the Wallbox App here:
- Brand: Wallbox
- Article number: PPR1-0-2-4-K-002

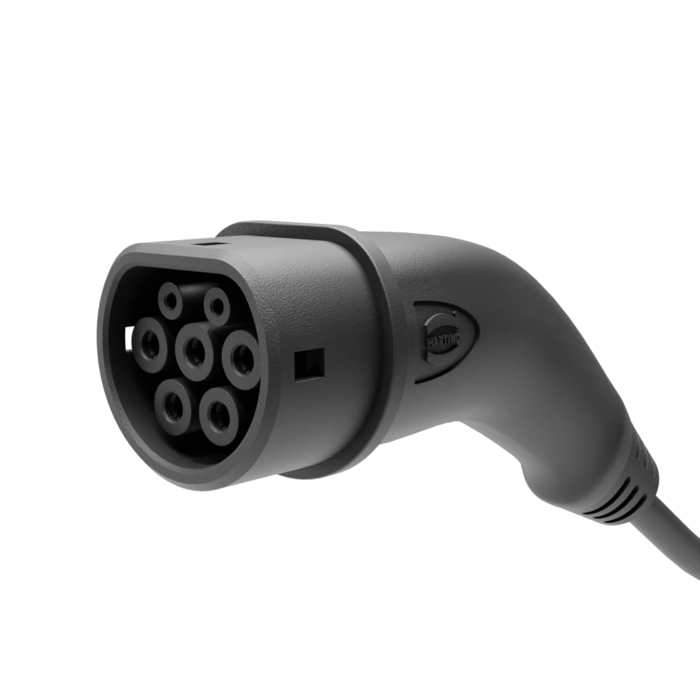

- Plug type: Type 2
- Number of Phases: 3 Phases
- Number of Amps per phase: 32A
- Maximum payload: 22 kW
- Charging cable length: 5 meter
- Display: No
- RFID Security: Yes
- Charging information: By RGB-LED and app
- Controllable via app: Yes (MyWallbox App) & Wallbox Business
- Load Balancing: Manual & Dynamic (optional via Power Boost)
- Connectivity: Bluetooth / WiFi / 4G
- Connection with solar panels: Yes (optional via Power Boost)
- Suitable for charge cards: Yes
- Automatic settlement: Yes (optional)
- Subscription: No, no monthly costs
- Simcard: -
- Language manual: EN, NL, DE, IT, ES & FR
- Colour(s): Black
- Weight: 1.4 KG (without cable)
- Sizes (excluding cables): 19.8 x 20.1 x 9.9 cm (h x w x d)
- Material: Polycarbonate
- Protection degree: IP55 / IK10
- Warranty period: 36 months
