Wallbox Pulsar Plus 22 kW - type 2 - socket- EV Charger
- Very compact size
- OCPP for communication with a backend system
- Use surplus solar energy to charge your car (*power boost required)
- Manage Wallbox via the free MyWallbox app
- Does not have dynamic load balancing as standard
- Power boost required for many functions
- Mediocre service

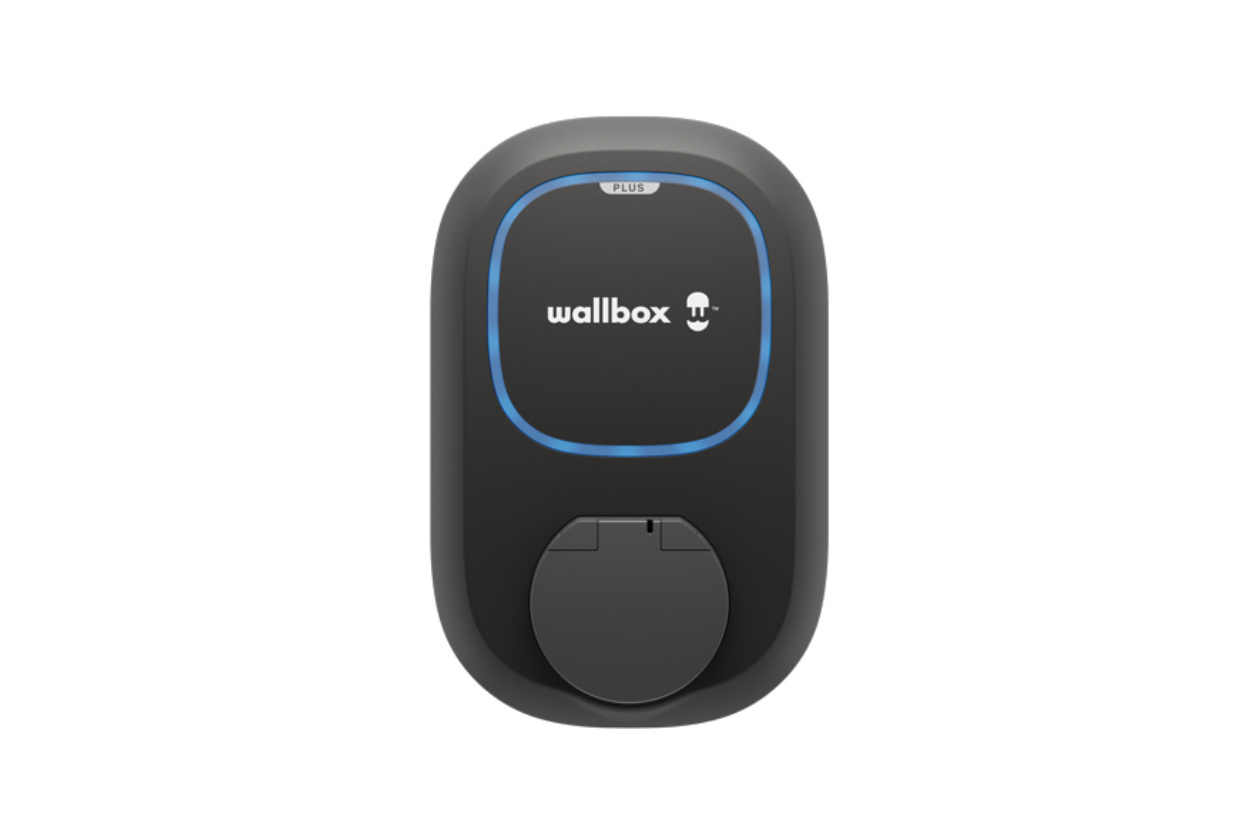

Wallbox Pulsar Plus 22 kW with socket
The Wallbox Pulsar Plus is the best-selling charging station from the Wallbox brand. Compact, powerful and a clear app makes it a very great charger for any situation. Equipped with a charging capacity of up to 22 kW and it comes standard with a socket connection for a type 2 plug. The charging station is easy to connect to your own WiFi and can be controlled anytime and anywhere via the MyWallbox app. Charging station can be paired with E-Flux, Maxem or other providers to enable business settlement.
- Can used for all hybrid and electric cars with a type 2 plug.
- Adjustable power between 3.7 and 22 kW depending on your preferences.
- Maximum output 3x32A
- Suitable for business and private usage, compact & modern design
- Possibility to expand charging station with Active Load Balancing by the Power Boost. As a result, your wallbox measures the energy consumption of your home live and automatically adjusts the charging session of your EV to the capacity of the local electricity grid.
- Can be controlled and read remotely using the free MyWallbox app
- This wallbox features a socket connection for a type 2 plug.
- Integrated DC residual current protection (DC 6mA).
- Eco-Smart function, for intelligently charging your surplus PV (* Power Boost required).
- Plug & Charge ensures a quick start of the charging session
- LED status indication; via the LED circle on the front of the Wallbox the charging status is displayed.
- MID Meter; possibility to install a MID meter e.g. for registration of charging sessions via the optional Wallbox MID meter
- Free back office choice (sim-lock free)
- Communication protocol Central System: OCPP 1.6J cloud-to-cloud
- Wi-Fi connection
- Dimensions: 204,3 × 142,5 × 313 mm (h x w x d)
- Weight: 2,5 KG
- Made of plastic in the color black.
- This wallbox comes standard with a multilingual installation and user manual
- Wall and pole mounting possible
- Degree of protection IP55 / IK10: suitable for outdoor use
- European A-quality; a solid and high quality Spanish product
- 2-year warranty
Wallbox Pulsar Plus 22 kW installation
When installing a EV charger, you actually have 2 choices;
1) You can install the Wallbox Pulsar Plus ev charger yourself.
2) Let a charging station installer install it.
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, for this 22 kW charging station, use a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside. Besides the right power cable, you will also need a data cable for this charging station if you use the Wallbox powerboost for dynamic load balancing. Have you also checked whether you still have enough space in your fuse box? This is because the earth leakage circuit breaker takes up 4 modules, as does the power booster, so an expansion box is often needed.
For specific charging station installation instructions, please refer to the manual(s) below.
Want to know more about the EV Charger Pulsar Plus?
- User manual
- Installation manual
- Power Boost manual (Dynamic Load Balancing)
- Datasheet
You can find the Wallbox App here:
- Brand: Wallbox
- Article number: PSP1-W-2-4-9-002
- Plug type: Type 2
- Number of Phases: 3 Phases
- Number of Amps per phase: 32A
- Maximum payload: 22 kW
- Charging cable length: Socket
- Display: No
- RFID Security: No
- Charging information: By RGB-LED and app
- Controllable via app: Yes (MyWallbox App)
- Load Balancing: Manual & Dynamic (optional via Power Boost)
- Connectivity: WiFi & Bluetooth
- Connection with solar panels: Yes (optional via Power Boost)
- Suitable for charge cards: No
- Automatic settlement: No
- Subscription: No, no monthly costs
- Language manual: EN, NL, DE, IT, ES & FR
- Colour(s): Black
- Weight: 2 KG (without cable)
- Sizes (excluding cables): 16,6 x 16,3 x 8,2 cm (h x w x d)
- Material: Polycarbonate
- Protection degree: IP54 / IK08
- Warranty period: 24 months
