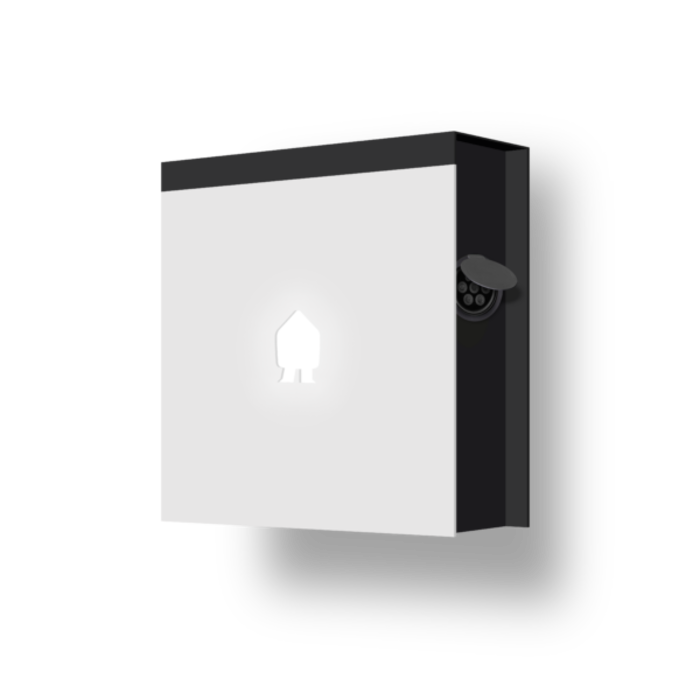

Smappee EV Wall Eichrecht- 22 kW - 3-Phase - 32A - socket - EV Charger
- No fixed charging cable in sight
- Future-proof and up-to-date
- Including scan & charge system
- 2-year warranty
- Does not have a display

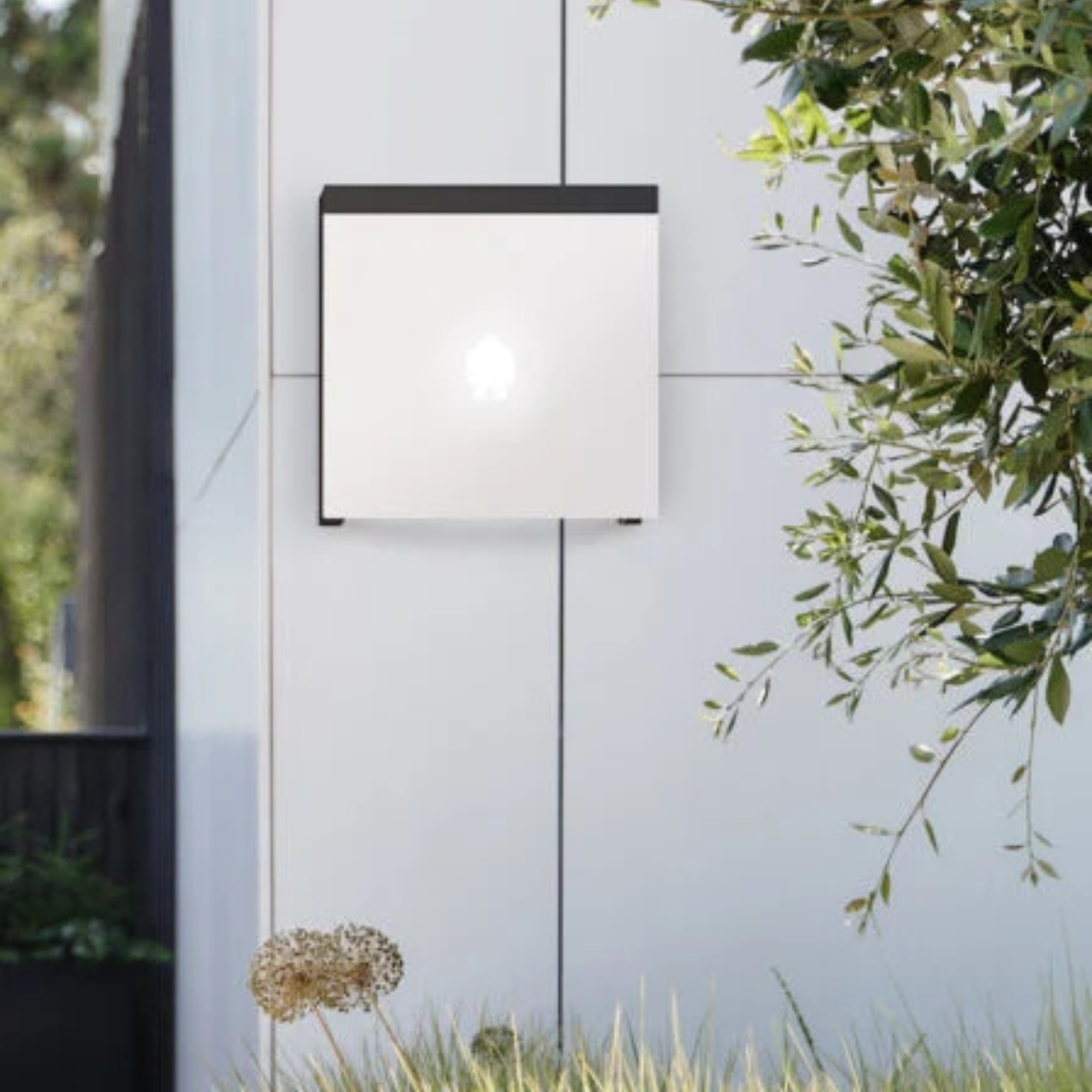

Smappee EV Wall Eichrecht
The Smappee EV Wall Lite is a charging station with a sleek design. Equipped with a charging capacity of up to 22 kW, via a type 2 socket. Easy to link with your dynamic energy contract. Real-time control anytime and anywhere via Wi-Fi or 4G, using the Smappee APP. Dynamic load balancing and RFID locking are available. Suitable for business settlement and all charge cards. A quality product from Belgium with a 2-year warranty.
- This wallbox is suitable for all hybrid and electric cars with a type 2 plug.
- Maximum charging capacity: 22 kW / 3 x 32A
- Suitable for business and private use.

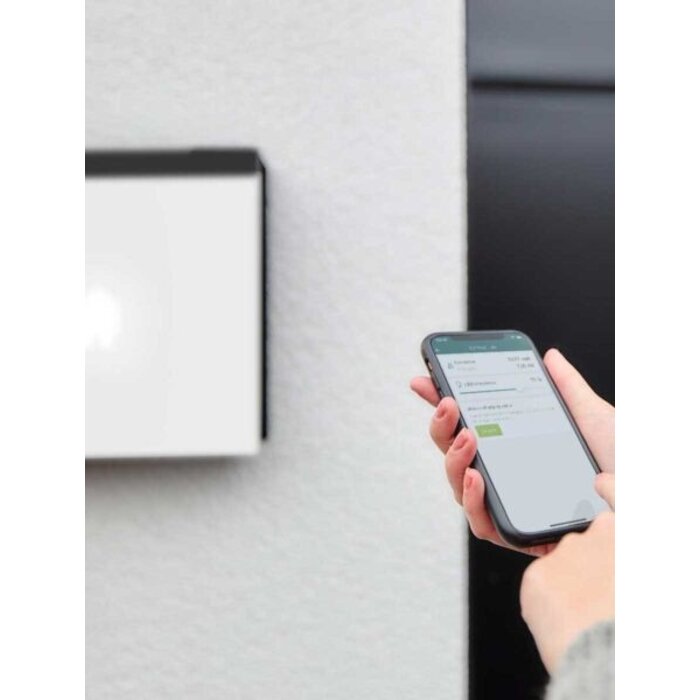

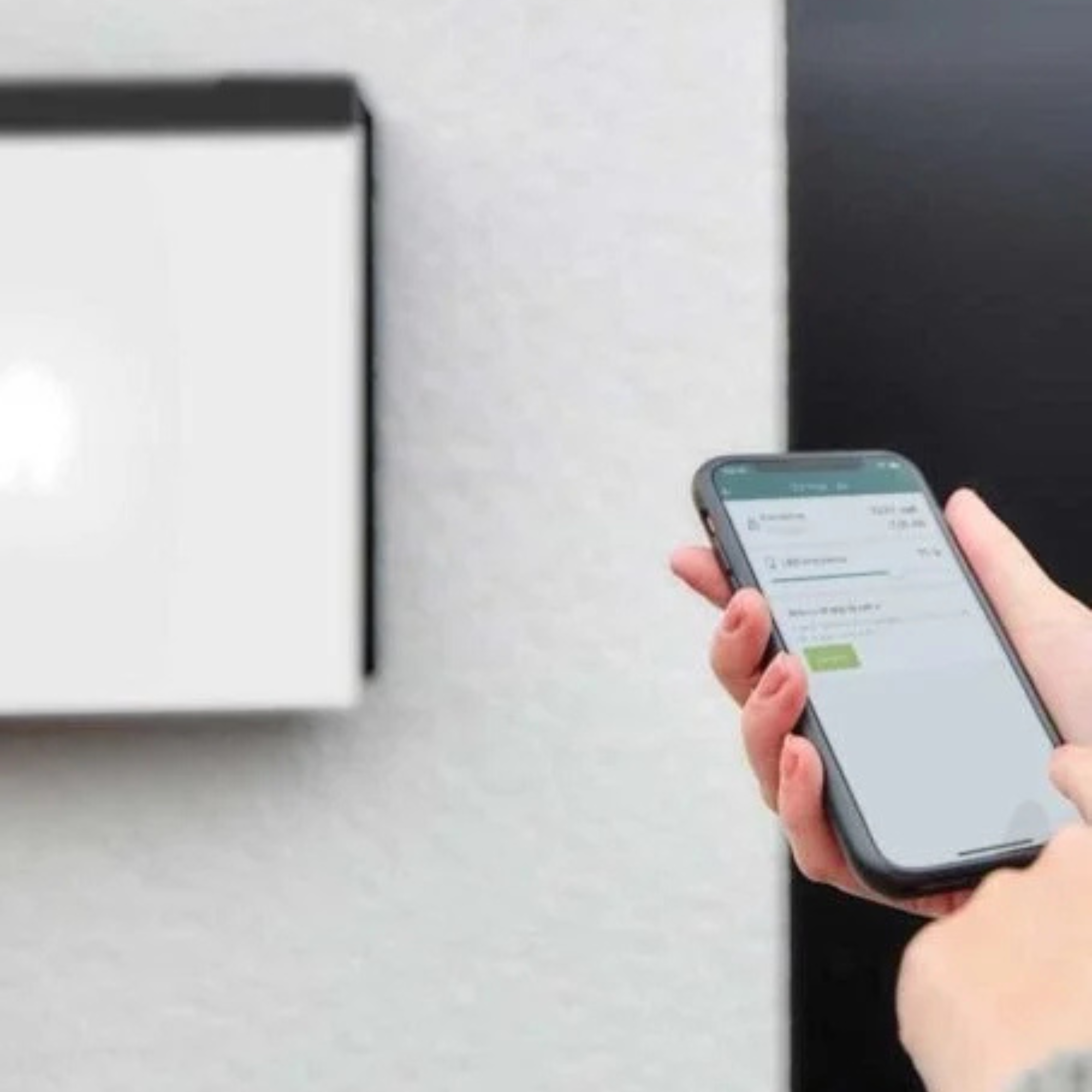

- Free Smappee APP; this app allows you to remotely control and monitor/read your Smappee EV Wall Lite charging station. In summary, you can use the following features on the app:
- Gain insight into your charging session and monitor speed
- Track your charging history - Scan and charge: Other users can also use the EV Wall Home by scanning the QR code. You can scan the QR code in the Smappee application.
- This charging station features a socket connection for a type 2 plug.
- Includes DC 6mA ground fault protection, protection against over -& underload, overheating and short circuit.
- Plug & Charge or authorization via RFID security in order to prevent unauthorized use.
- LED status indication; via the RGB LED indicator on the top of the Smappee EV Wall Lite, the charging status is displayed. The different statuses can be found in the user guide below.
- Central System communication protocol: OCPP 1.6 JSON, ready for update to OCPP 2.0.
- Wi-Fi and 4G connectivity.
- Dimensions: 300 × 300 × 110 mm (h x w x d).
- Weight: 4.7 KG
- Colour: RAL 9016 (Star white) + RAL 702 (black grey)
- This wallbox comes standard with a multilingual installation and user manual.
- Protection grade IP54 / IK8: Suitable for outdoor use.
- European A-quality; a solid and high-quality product from Belgium.
- 2-year warranty.
Smappee EV Wall Lite charging station installation
When installing a Smappe EV Wall Lite, you actually have 2 choices;
1) You can install the Smappee EV Wall Lite charging station yourself.
2) Let a charging station-installer install it.
In general, we always recommend having the charge post installed by a recognised charge post installer. After all, you save on safety. This is because it is often underestimated how much is involved and mistakes can have major consequences. A certified installer has taken the necessary installation courses, often including those provided by the brand itself. Curious about the installation costs of this Smappee charging station? Contact us for a no-obligation charge post quote.
If you decide to install the charging station at Lite yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, you will need a power cable for this 22 kW charging station. In this case, that is a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside. Since it only connects via Wifi, you don't need a data cable.
Have you also checked whether you still have enough space in your fuse box? The earth leakage circuit breaker takes up 4 modules, so an expansion box is often required.
For specific charging station installation instructions, please refer to the manual(s) below.
Want to know more about this Smappee EV Wall Lite charging station?
- Installation and user manual (in English)
- Datasheet (in English)
- EU conformity declaration
You can find the free Smappee APP here:
- Brand: Smappee
- Article number: EVWE-332-BR-E-W
- Plug type: Type 2
- Number of Phases: 3 Phases
- Number of Amps per phase: 32A
- Maximum payload: 22 kW
- Charging cable length: Socket
- Display: No
- RFID Security: Optional
- Charging information: By LED and APP
- Controllable via app: Yes (Zaptec APP)
- Load Balancing: Manual
- Connectivity: WiFi & 4G
- Connection with solar panels: No
- Suitable for charge cards: Yes
- Automatic settlement: Yes
- Subscription: Optional
- Simcard: Optional
- Language manual: EN, NL, DE, ES & FR
- Colour(s): RAL 9016 (star-white) + RAL 7021 (black-grey)
- Weight: 4,4 KG
- Sizes (excluding cables): 300 × 300 × 110 mm (h x w x d).
- Material: Magnelis (structure), aluminium (front panel)
- Protection degree: IP54 / IK8 / UL94 5VB
- Warranty period: 60 months
