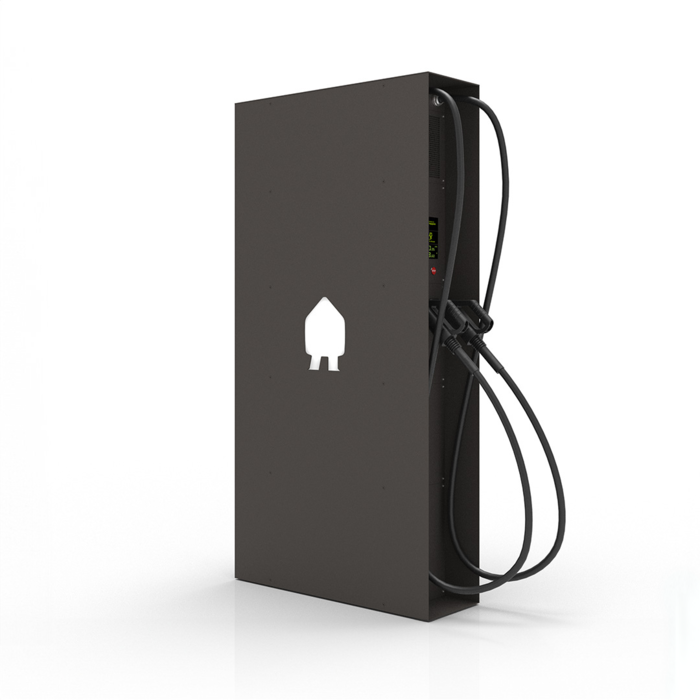

Smappee EV Ultra 240D - DC charging station - 2 x 120kW - 350A
- 2x CCS2 Plug
- Built-in displays
- Choice between 1x240kW & 2x120kW
The Smappee EV Ultra 240D is a ground-mounted DC charger with two CCS2 connections. Combined with Smappee Infinity, it provides autonomous overload protection. Smappee's smart charging platform provides users with detailed data on the charging process and costs, and enables remote monitoring across multiple charging points. Payments are made via QR code or RFID card. The status and how to charge are visible on the display. The EV Ultra 240D has a robust and compact housing suitable for all weather conditions and made of high-quality materials. The modular design and wireless updates make the EV Ultra durable and future-proof. A quality product from Belgium with no less than a 2-year warranty.
- This charging station is suitable for all hybrid and electric cars with a CCS2 plug.
- Maximum charging capacity: 2x120kW.
- Suitable for business and private use.
- Free Smappee APP; this app allows you to remotely control and monitor/read your Smappee EV One Home charging station. In addition, the app is linked to Smappee Infinity, which is connected to the main power supply. With this, Smappee also provides insight into your entire energy management, including solar insight. In summary, you can use the following features via the app:
- Gain insight into your charging session and monitor speed.
- Track your charging history.

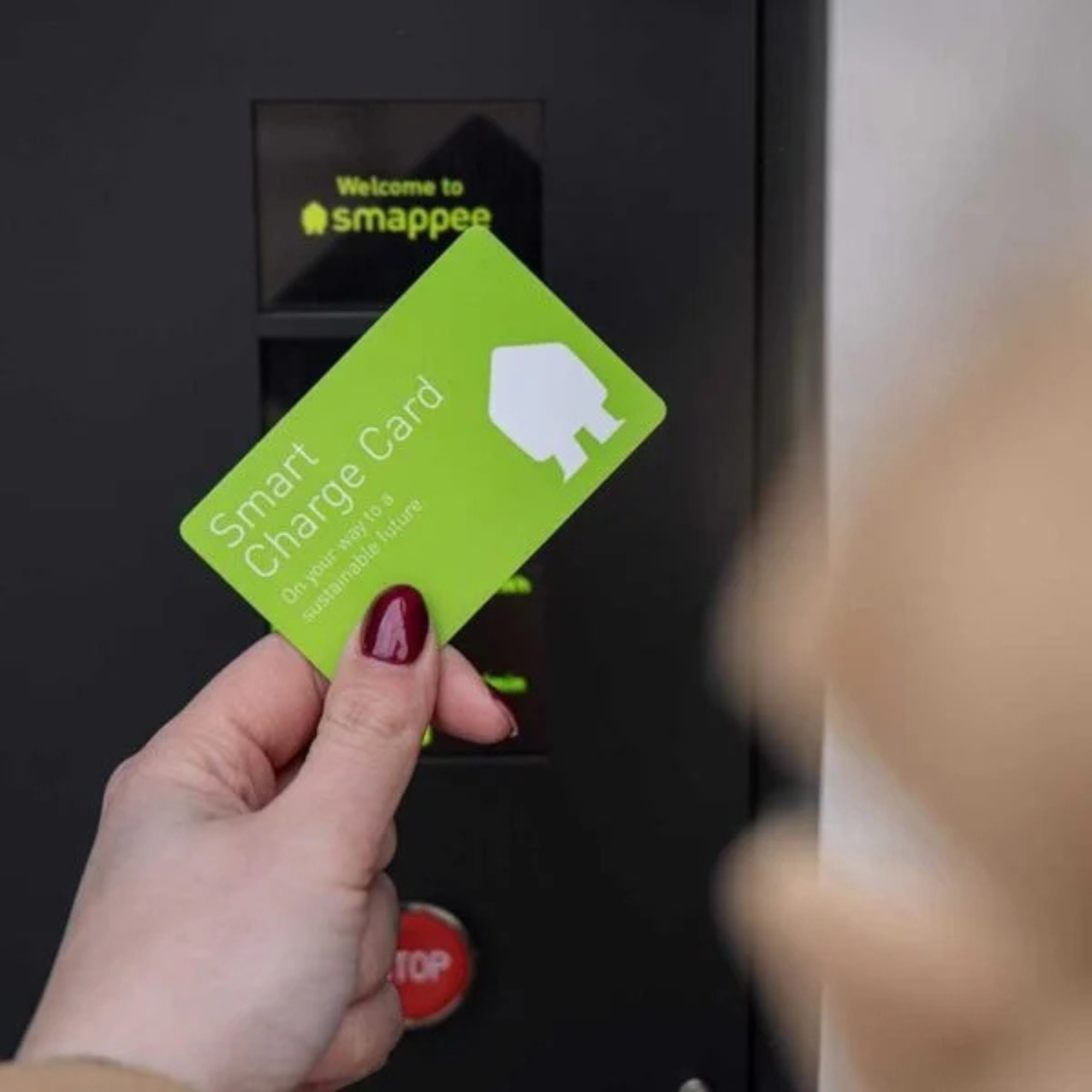

- Insight into full energy management. - Scan and charge: Any user can use the EV Ultra 240D by scanning the QR code on the charging station. You can scan the QR code in the Smappee app, where the charging session can be started against payment. Payment via RFID is also possible.
- Displays: via the two built-in displays, the charging status is easy to follow. In addition, the displays provide the necessary instructions when charging.
- Communication protocol Central System: OCPP 1.6 JSON, ready for update to OCPP 2.0.1
- Wi-Fi and 4G connectivity (features a modem).
- Dimensions: 1870 x 920 x 325 mm (h x w x d).
- Weight of charging station: 240 KG | charging cable: 9.5 KG | Anchor: 20 KG
- Input current: 350A
- Charging cable length: 3,25 M
- Colour: RAL 7021 (black-grey).
- This charging station comes standard with a multilingual installation and user manual.
- Degree of protection IP54 / IK10: suitable for outdoor use.
- European A-quality; a solid and high-quality product from Belgium.
- 2-year warranty.
Want to know more about this Smappee EV Ultra 240D charging station?
- Installation and user manual EV Ultra (in English)
- Datasheet EV Ultra (in English)
- EU conformity declaration
You can find the free Smappee APP here:
- Brand: Smappee
- Article number: EVU-240D-C3-B
- Plug type: 2x CCS2
- Number of Phases: 3 Phases
- Number of cables: 2
- Maximum payload: 2 x 120 kW
- Sizes (excluding cables): 1870 × 920 × 325 mm
- RFID Security: Yes
- Weight: 55kg
- Material: Powder-coated steel
- Protection degree: IP 54 / IK 10
- Colour(s): RAL 7021 (Black-Grey)
