- Dynamic load balancing standard included, without extra costs
- Charge your car with self-generated energy from your solar panels
- Free Ratio EV Charging App
- Possible to charge even 6A, useful when you have few solar panels
- Dutch manufacturer and excellent service

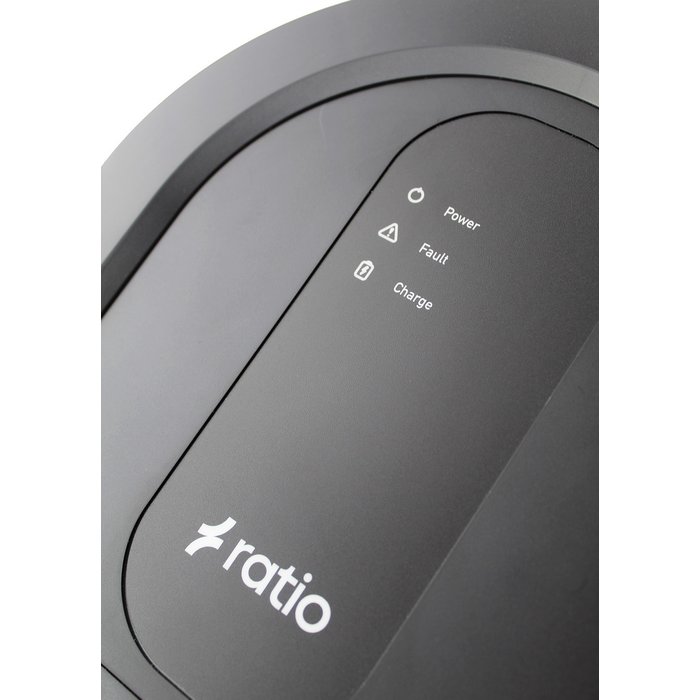

- Doesn't have a display
- Integrated kWh meter is not MID approved

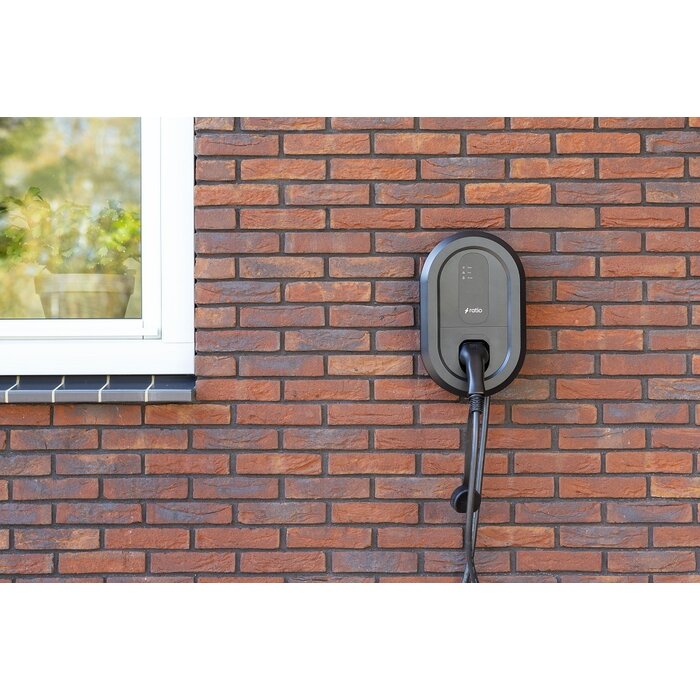

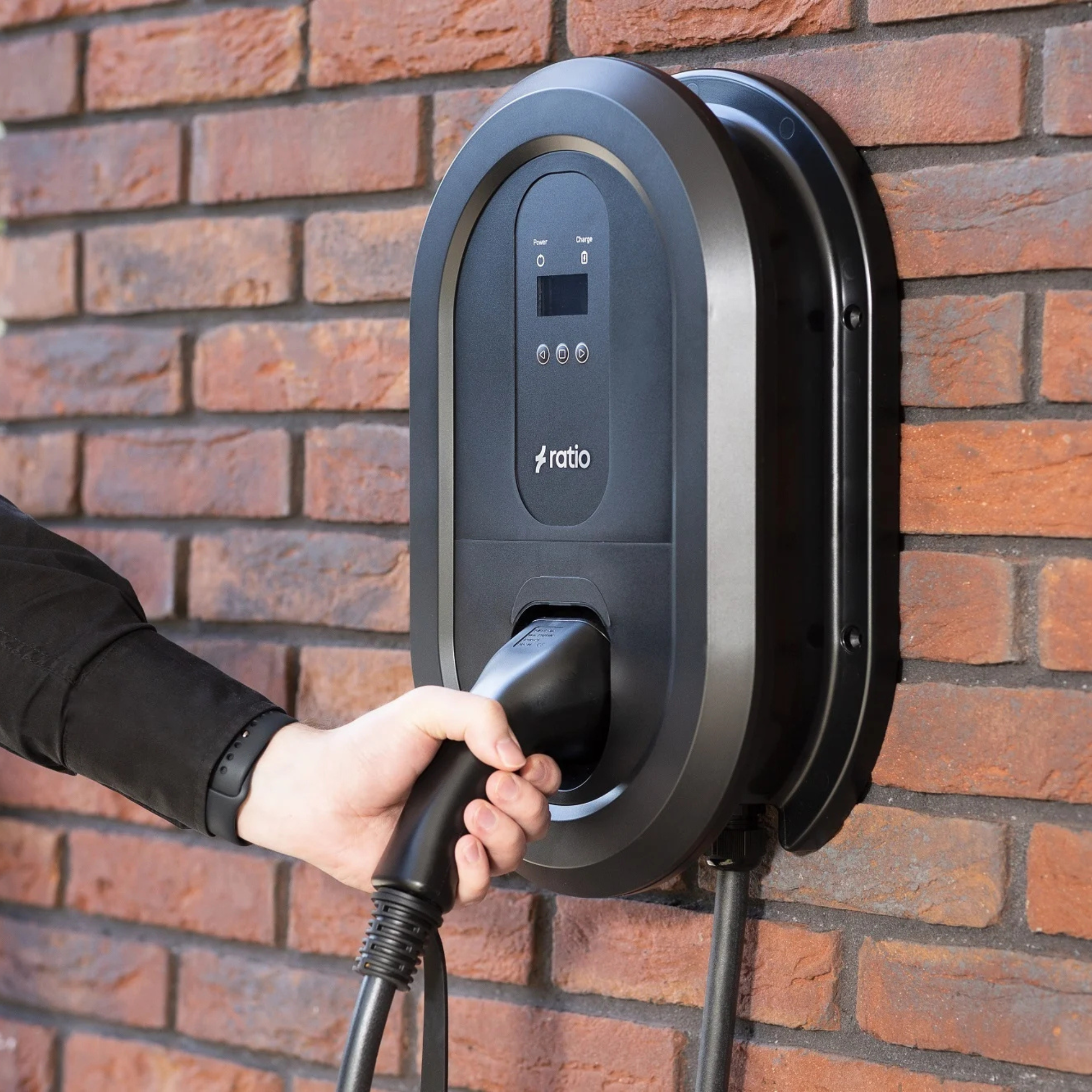

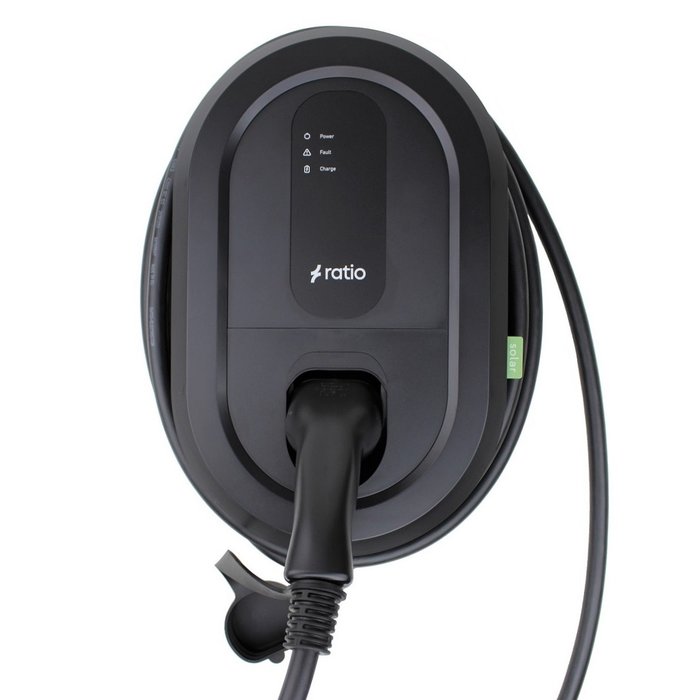

Ratio Solar 22 kW with charging cable

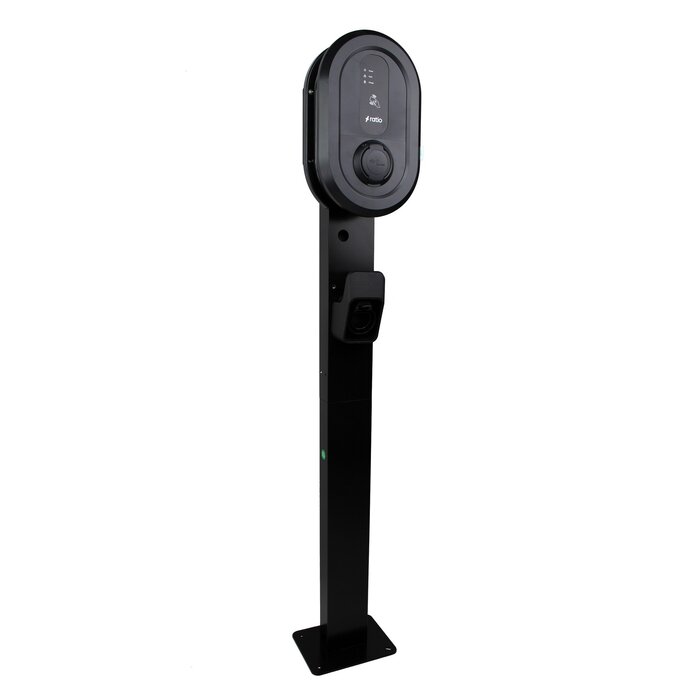

You want a EV Charger with with Dynamic load balancing function, make optimal use of your own generated solar energy and App control. Then this is the EV Charger you want. Clean design and the charging cable is conveniently wrapped around the charge post. The price is all-in, so you don't need to order anything extra. Made in the Netherlands with a 5-year warranty, in short a product that is attractively priced and assured of high quality.
- This EV Charger is suitable for all hybrid and electric cars with a type 2 plug.
- Maximum charging capacity: 22 kW / 3 x 32A
- Dynamic load balancing; this makes the EV Charger automatically take into account the power consumption of the household/business.
- To be linked with your dynamic energy contract
- Only charge your self-generated solar power using the Smart Solar and Pure Solar modes.

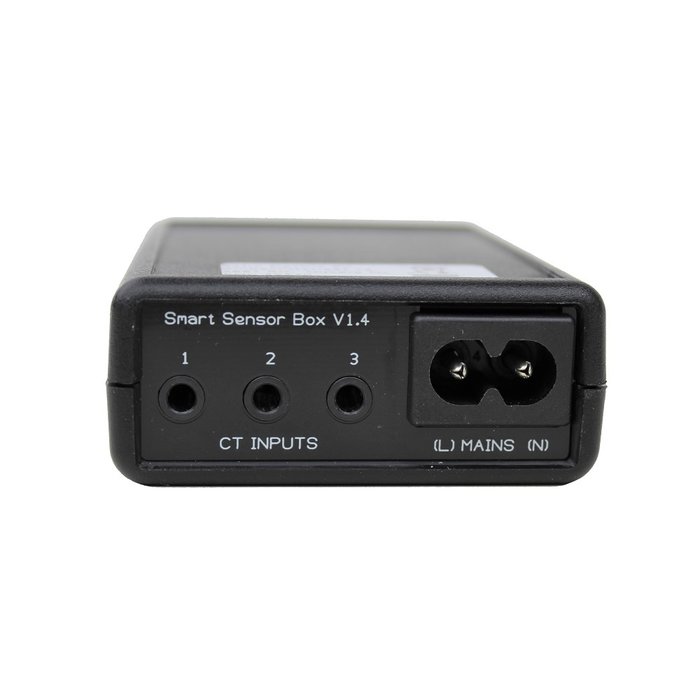

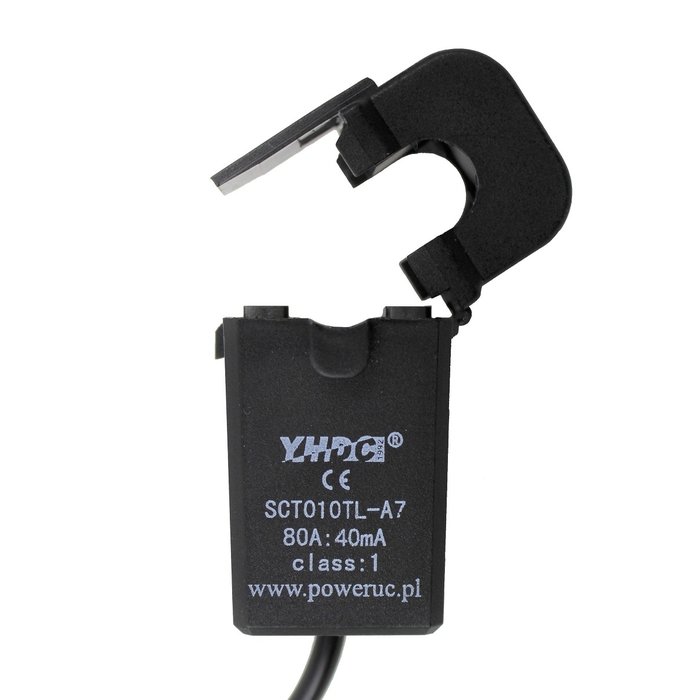

- IncludesSensorbox and 3 CT terminals: these Sensor box and CT terminals are for connecting to the 3 phases in your home to communicate to monitor power consumption and necessary for dynamic load balancing and making the best use of your own generated solar energy.
- Power Sharing; ability to have multiple chargers (up to 4 units) connected together to evenly distribute the available power among the charging points.

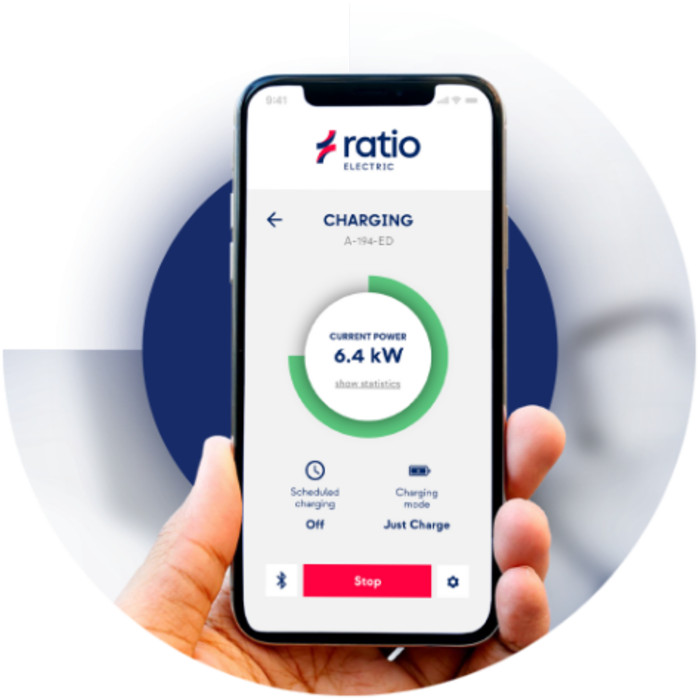

- Ratio EV Charging App; this free App allows you to remotely control and read your Ratio Solar EV Charger. Through the App, you can use the following features, among others:
- Gain insight into the current charging session
- Overview of your charging history
- Select the charging mode that suits you
- Lock and unlock the charger

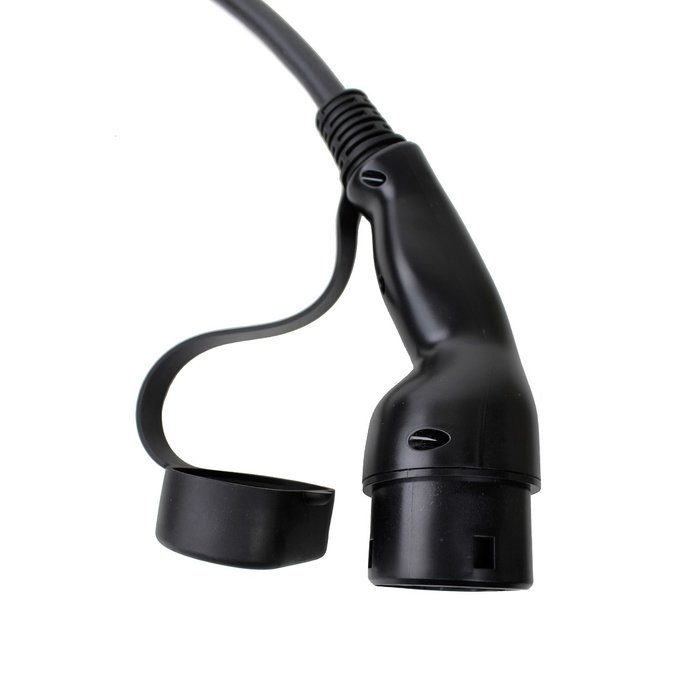

- Schedule delayed charging sessions - This EV Charger features a fixed 5 or 7.5 meter charging cable with a type 2 plug.
- Includes earth fault protection, protection against over- & underloading, overheating and short circuiting.
- Mode 3 EV Charger.
- All smart functions can be set via the App.
- Equipped with a kWh meter (without MID).
- Bluetooth, WiFi & Ethernet connectivity.
- Dimensions: 40 x 25 x 10.5 cm (h x w x d)
- This EV Charger comes standard with drilling template, assembly step-by-step plan and English manual.
- Degree of protection IP54: Suitable for outdoor use
- Made in the Netherlands.
- 5-year warranty.
Ratio Solar 22 kW wallbox installation
When installing a Ratio Solar 22 kW EV charger, you actually have 2 choices;
1) You can install the Ratio Solar 22 kW wallbox yourself
2) Let a charging station installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, for this 11 kW charging station, use a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside. Besides the right power cable, you also have check whether you still have enough space in your fuse box. Because the earth leakage circuit breaker takes up 4 modules and a possible 3 phase kwh meter also takes up 4 modules, so an expansion box is often needed.
For specific charging station installation instructions, please refer to the manual(s) below.
Want to know more about the Ratio Solar EV Charger?
- Installation & user manual (in English)
- Datasheet
You can find the Ratio EV Charging App here:
