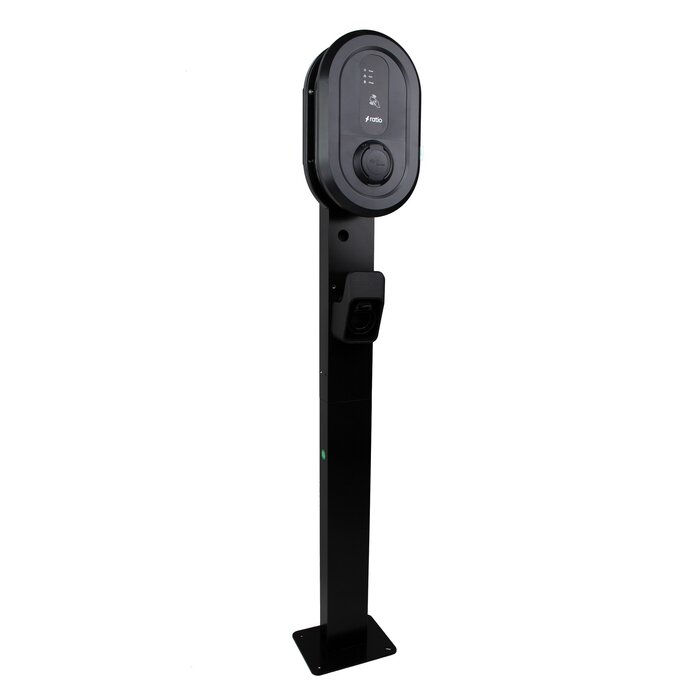

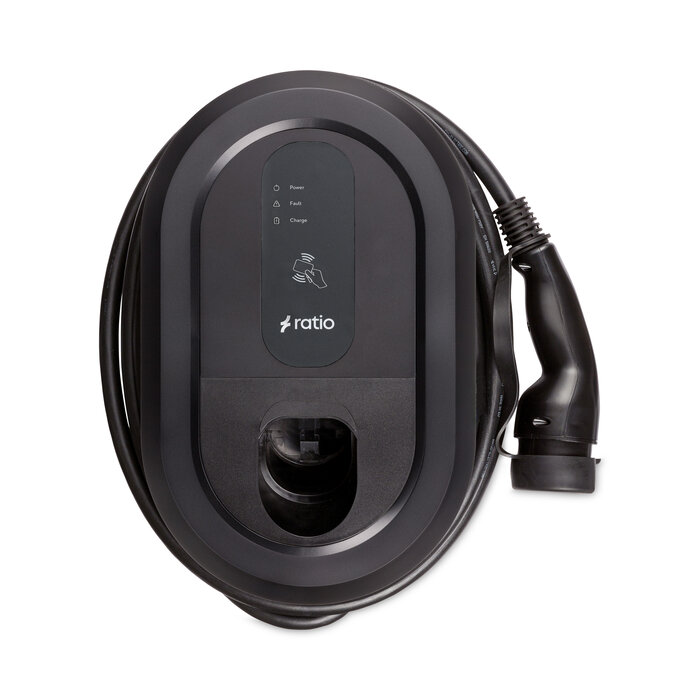

Ratio io6 22 kW - phase 3 - 32A - Type 2 - EV Charger

You want a wallbox with business settlement, dynamic load balancing function, optimal use of your own generated solar energy and App control. Then this new all-rounder, the Ratio io6, is the wallbox you want. Sleek design and the charging cable is conveniently wrapped around the charging station. A Dutch product with 3 years warranty, in short, a product that is competitively priced and assured of high quality and many features.

• This wallbox is suitable for all hybrid and electric cars with a type 2 plug.
• Maximum charging capacity: 22 kW / 3 x 32A
• Dynamic load balancing (optional via Sense 3-phase kit 63A); this makes the wallbox automatically take into account the power consumption of the household/business.
• Only charge your self-generated solar power using the Smart Solar and Pure Solar modes (optional via Sense 3-phase kit 63A).
• Sense 3-phase kit 63A; this kit can be ordered with your Ratio io6 wallbox and contains a Sensorbox and three CT clamps. These are for connecting to the 3-phases in your home to communicate to monitor power consumption and are necessary for dynamic load balancing and making optimal use of your own generated solar energy.
• Power Sharing; ability to have multiple chargers (up to 4 units) connected together to evenly distribute the available power among the charging points.
• E-Flux 4G sim card; the Ratio io6 is equipped with a 4G sim card from E-Flux. This allows you to have your costs incurred while charging automatically recovered from your work/employer. This works through the back office of E-Flux.

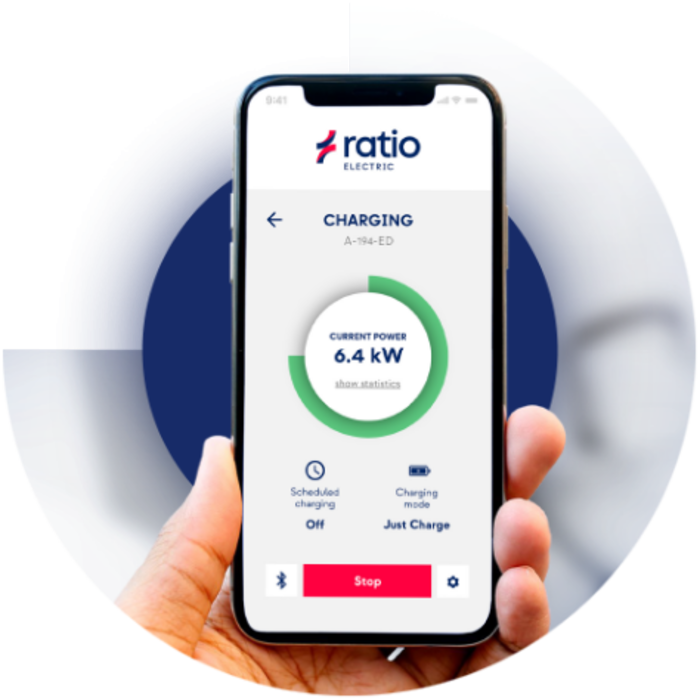

• Ratio EV Charging App; this free App allows you to remotely control and read your Ratio Solar wallbox. Through the App, you can use the following features, among others:
  - Gain insight into the current charging session
  - Overview of your charging history
  - Select the charging mode that suits you
  - Lock and unlock the charger
  - Schedule delayed charging sessions

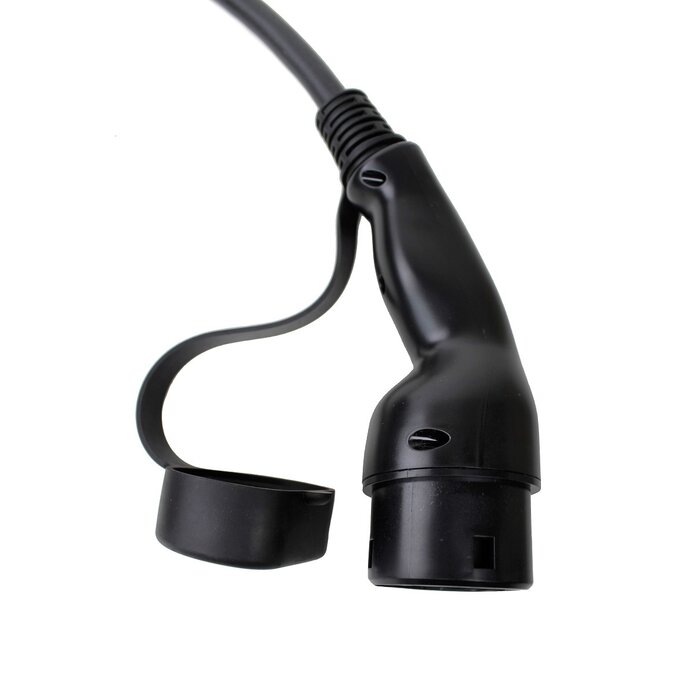

• This wallbox features a fixed 5 or 7.5 meter charging cable with a type 2 plug.
• Includes earth fault protection, protection against over- & underloading, overheating and short circuiting.
• Mode 3 wallbox.
• All smart functions can be set via the App.
• Equipped with a kWh meter (without MID).
• Locking via App or RFID (charge card); to prevent unauthorized use.
• Bluetooth, WiFi, Ethernet and 4G connectivity.
• Dimensions: 40 x 25 x 10.5 cm (h x w x d)
• This wallbox comes standard with drilling template, assembly step-by-step plan and English manual.
• Degree of protection IP54: Suitable for outdoor use
• Made in the Netherlands.
• 5-year warranty.

Ratio io6 22 kW wallbox installation

When installing a Ratio io6 22 kW EV charger, you actually have 2 choices;
1) You can install the Ratio io6 22 kW socket wallbox yourself
2) Let a charging station installer install it

In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, for this 11 kW charging station, use a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside. Besides the right power cable, you also have check whether you still have enough space in your fuse box. Because the earth leakage circuit breaker takes up 4 modules and a possible 3 phase kwh meter also takes up 4 modules, so an expansion box is often needed.

Want to know more about the Ratio io6 wallbox?
- Installation & user manual (in English)
- Datasheet

You can find the Ratio EV Charging App here:
