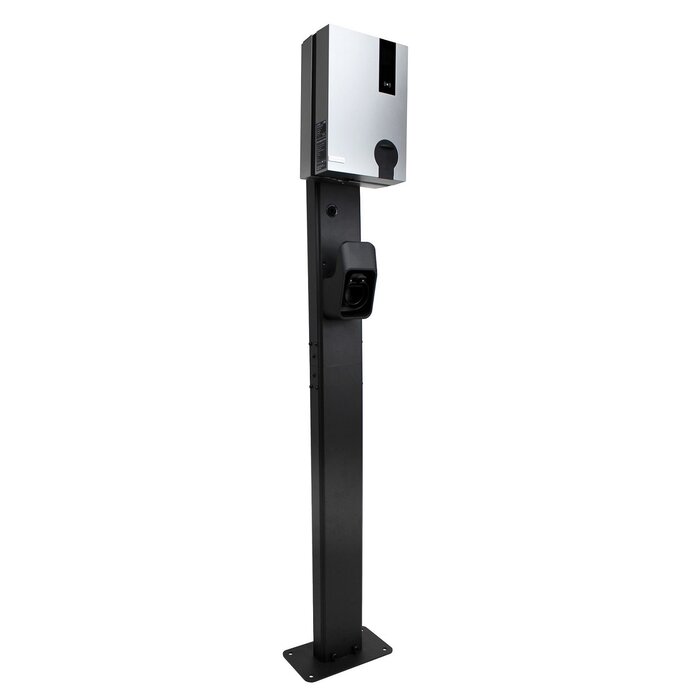

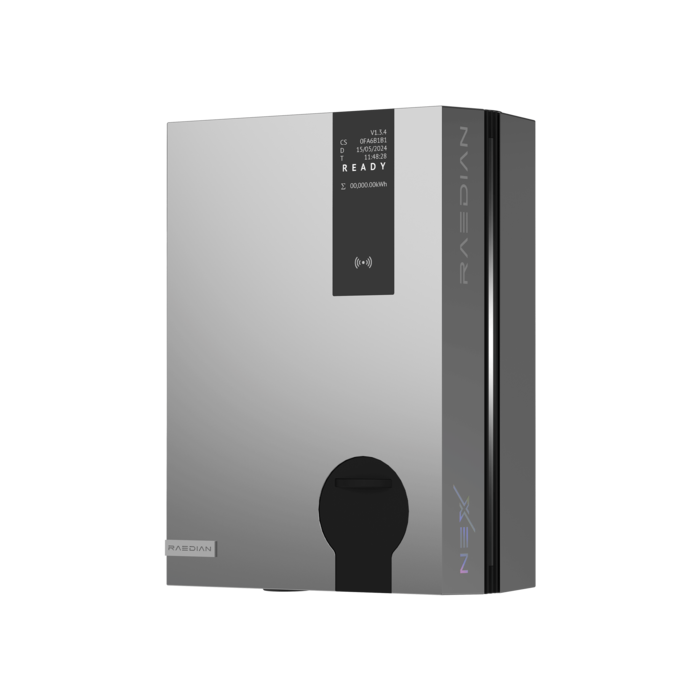

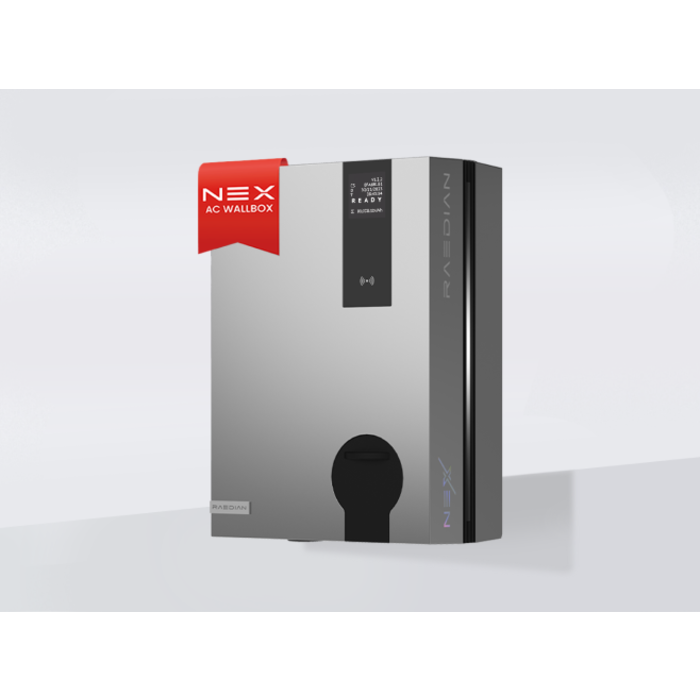

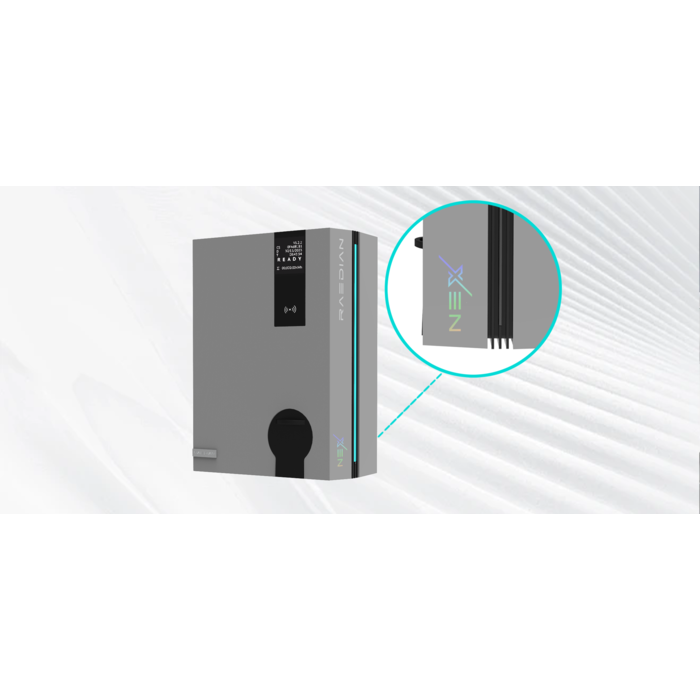

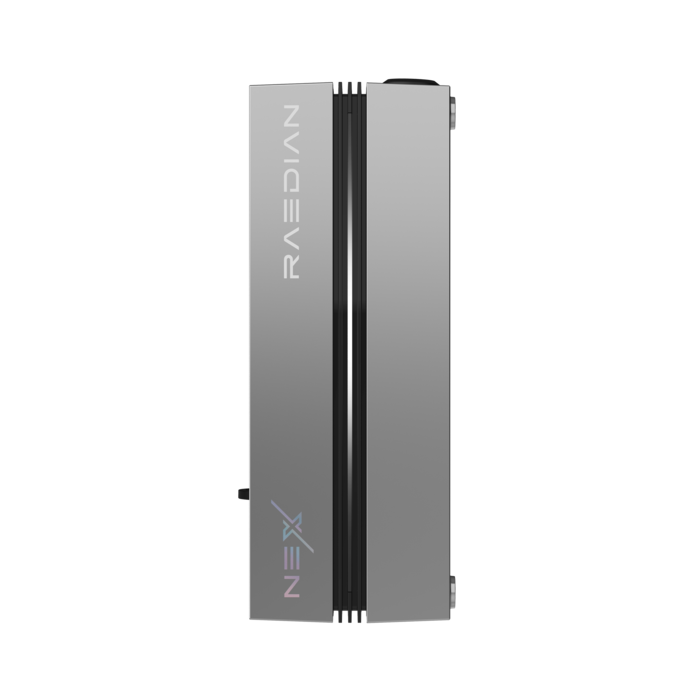

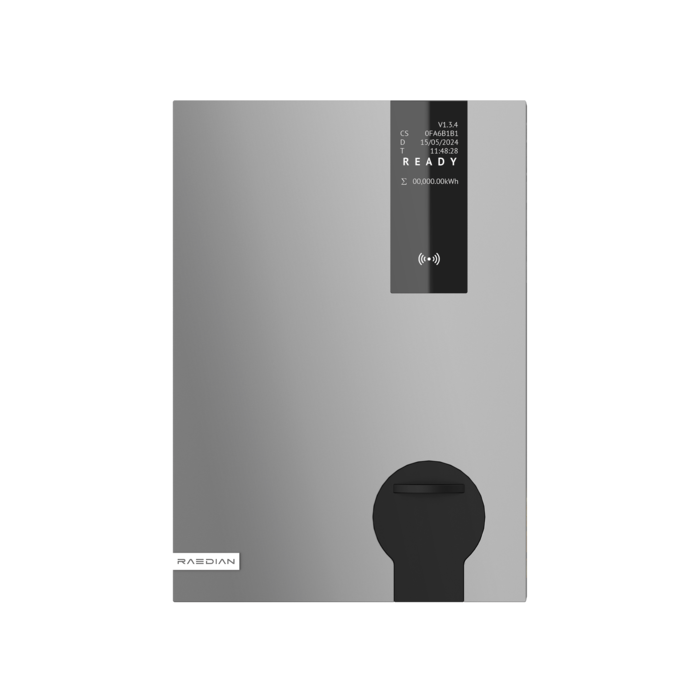

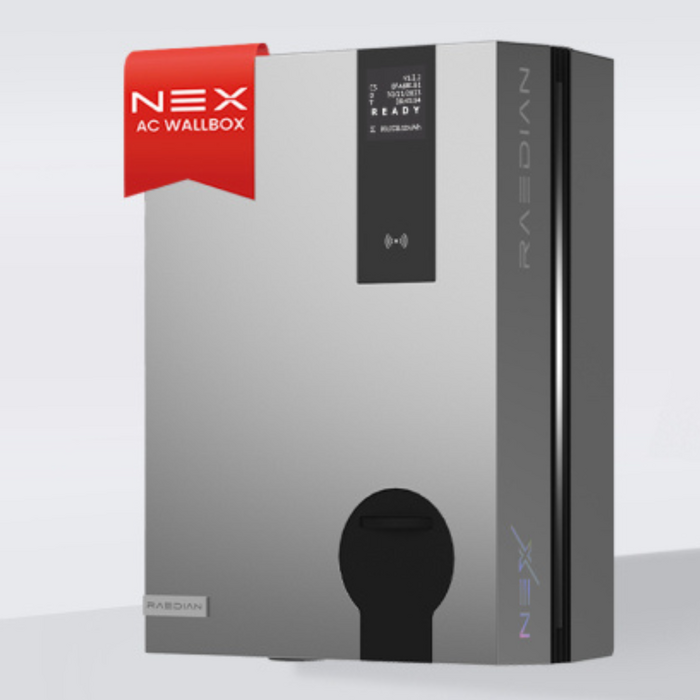

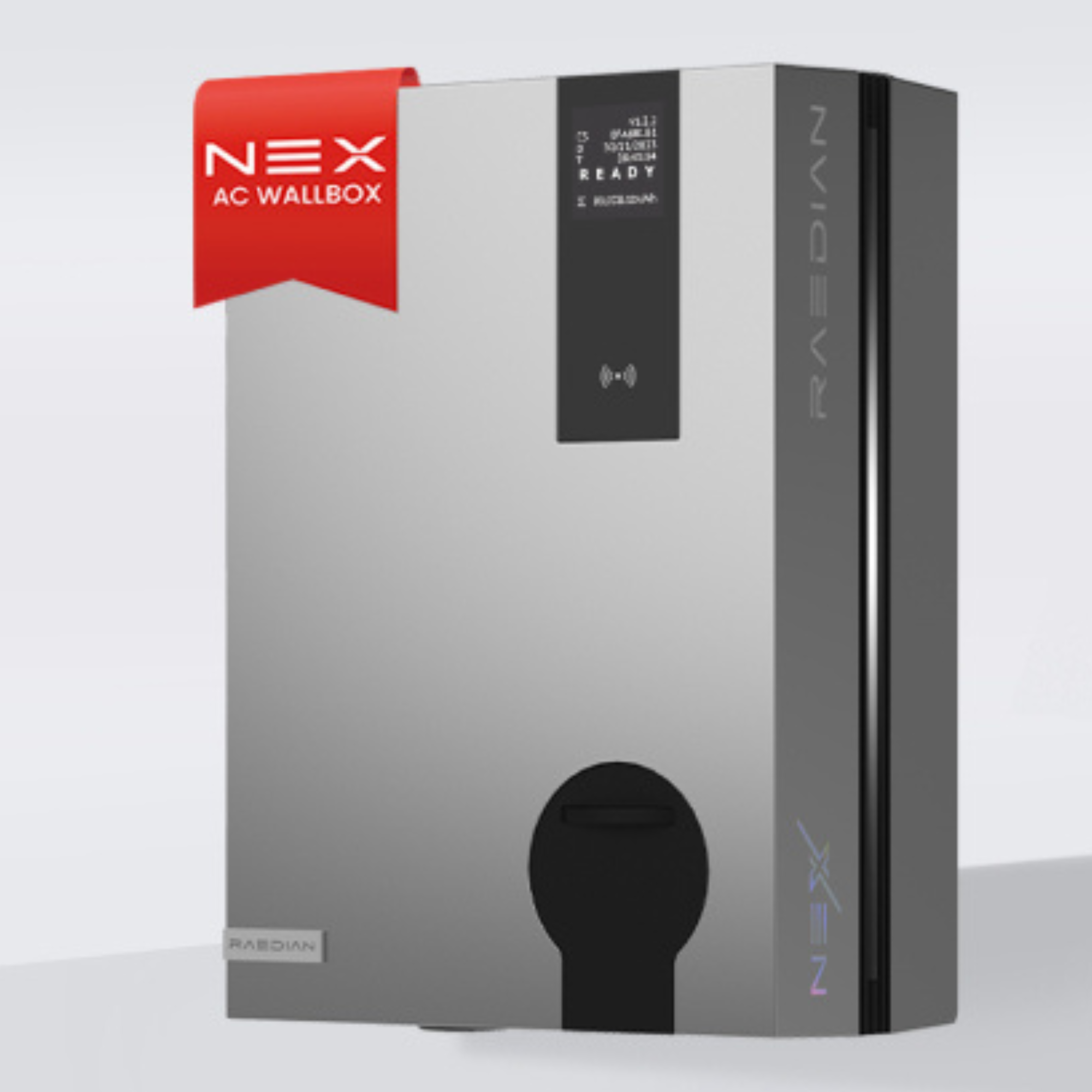

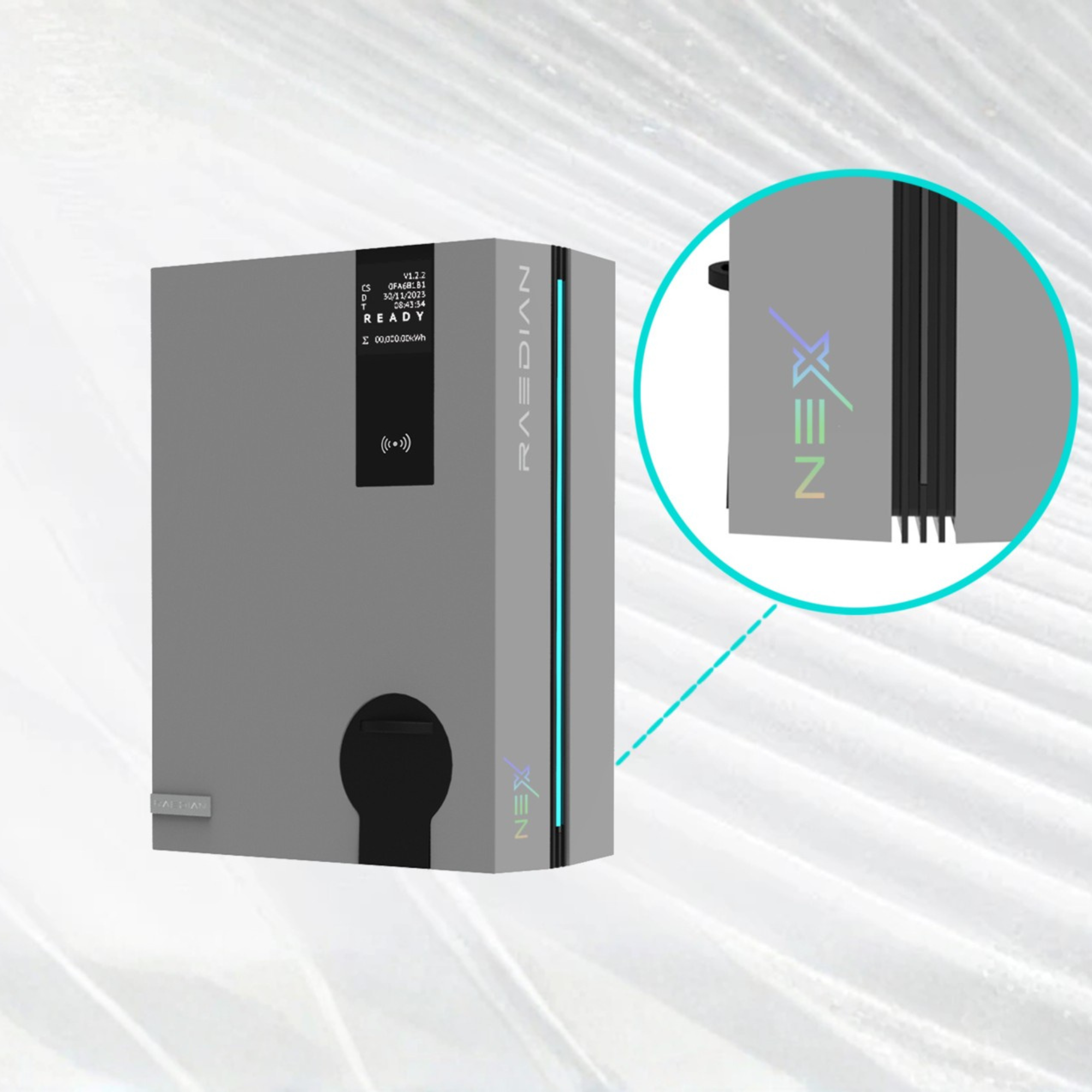

Raedian NEX EV Charger 22 kW
The Raedian NEX is suitable for both business and private use. It features a charging capacity of 22 kW, LED display and a MID meter, allowing business settlement.

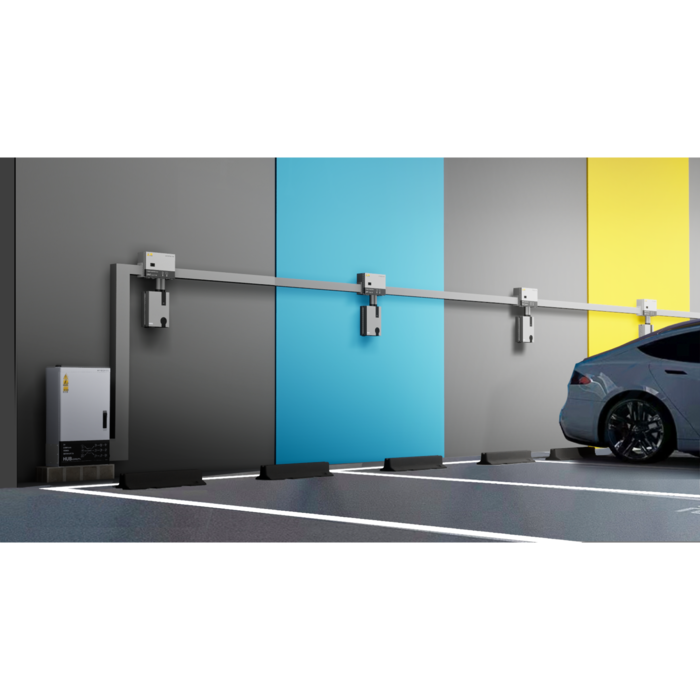

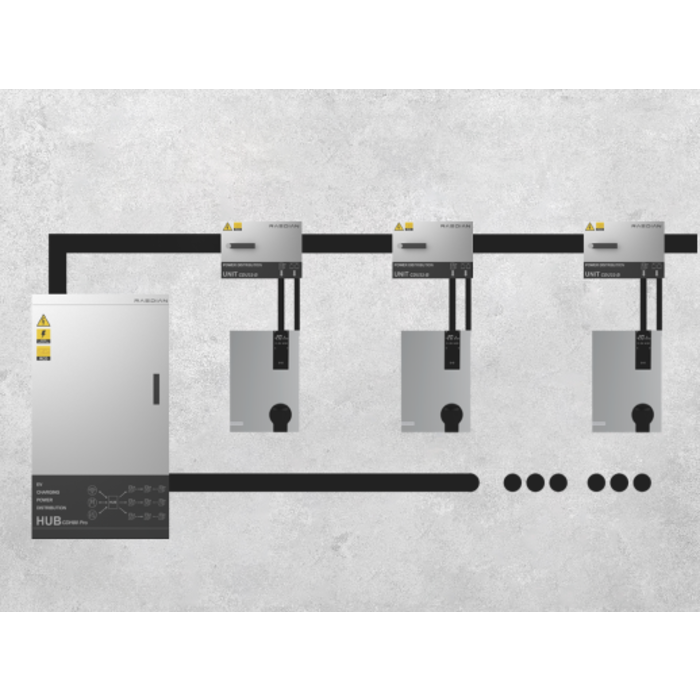

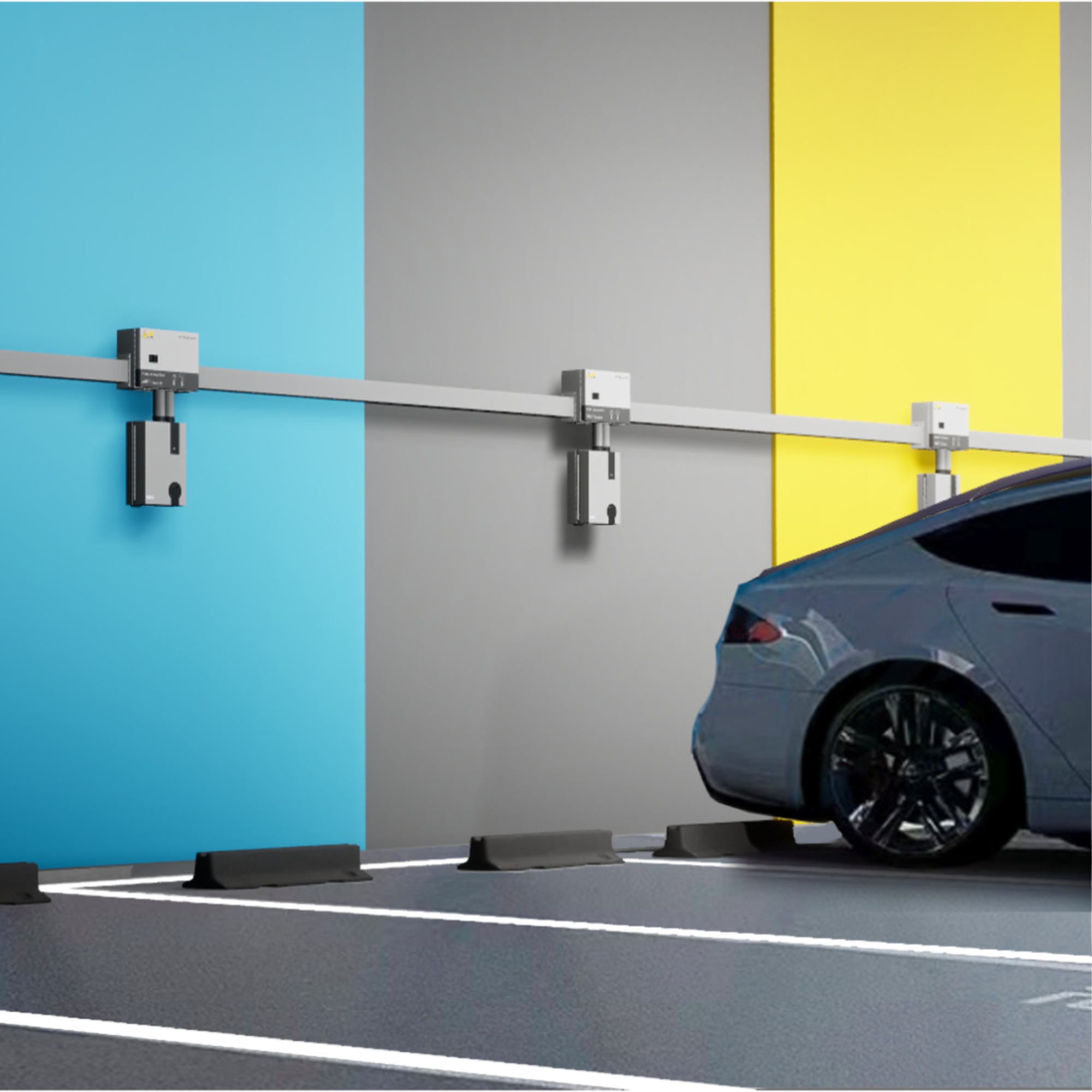

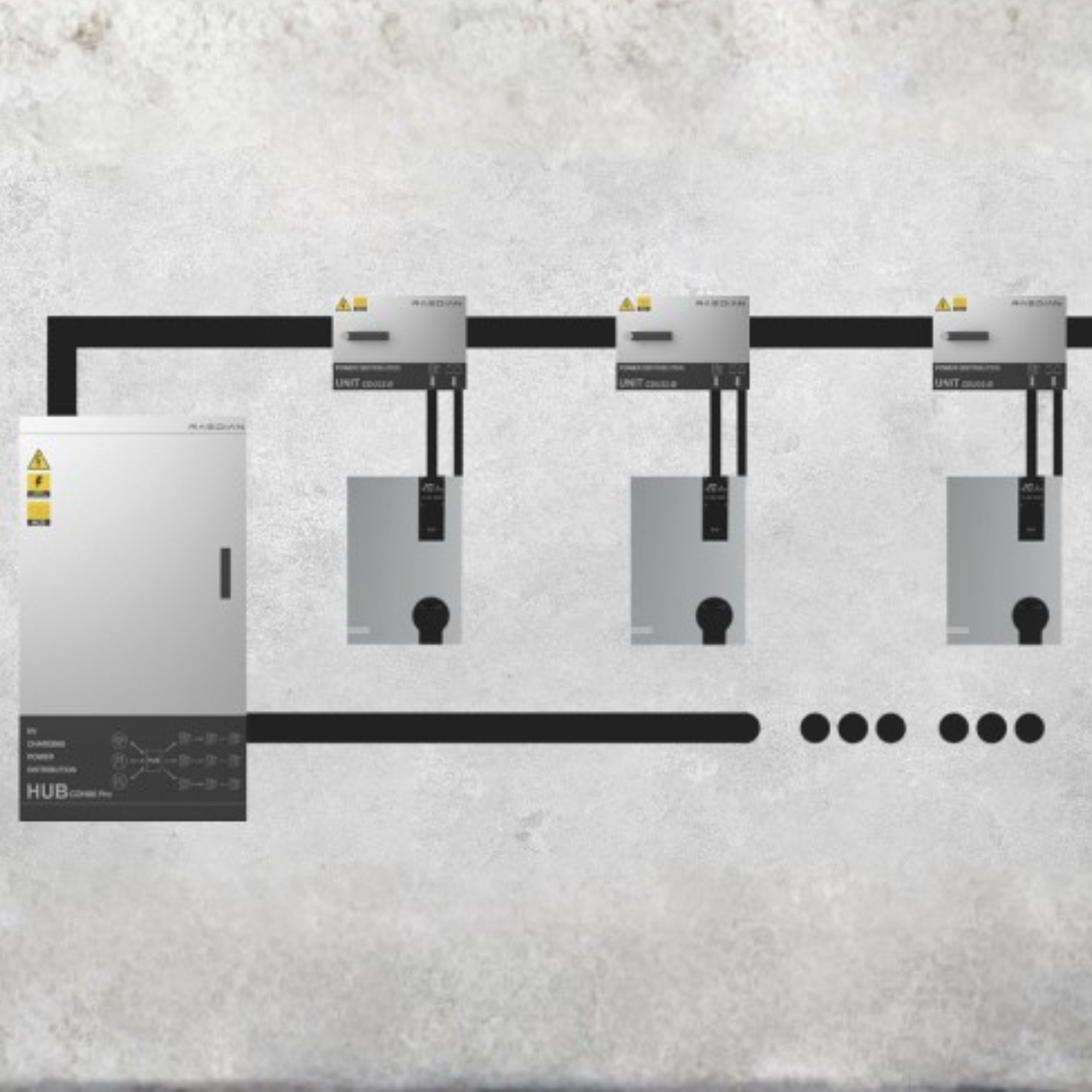

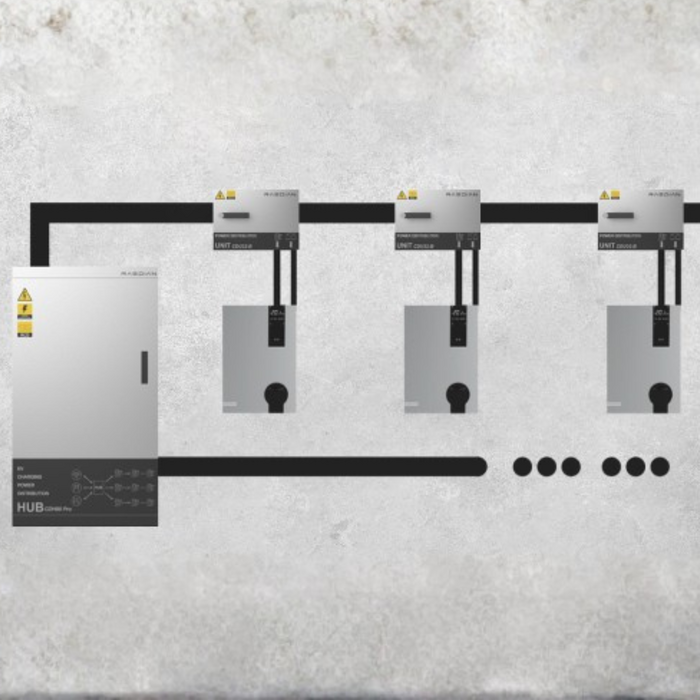

The charging station is suitable for use in a charging plaza, each easily managed from the Nebula CBS system.
- This charger is suitable for all hybrid and electric cars and features a charging cable with a type 2 connection.
- Maximum charging capacity: 22 kW / 3 x 32A.
- Suitable for private and business use.
- Unlock the charging station with an RFID card.
- Perfect for business use.
- Comes with app that features the following functions:
- Load Balancing
- Plug & Play concept
- Schedule charging sessions at off-peak times to save costs on your power bill.
- Easily share your charger with family and friends - Connection with solar panels possible via CT-Kit.
- Business settlement via MID-Meter.
- OCPP 1.6 for backend communication: The Open Charge Point Protocol (OCPP) controls. communication between a charging station and a backend system.
- Certification: IP55 (for indoor and outdoor use).
- Fully integrated MID meter with ±1% accuracy, certified by SGS.
- The MID-meter is 100% calibrated and inspected during production.
- Compact and light size.
- Connectivity: Wi-Fi, Bluetooth and 4G.
- Free smart charging APP.
- Dimensions: 297 x 210 x 110 (mm).
- Weight without cable: 3.3 KG.
Want to know more about the Raedian NEX ?
- Datasheet
- Installation & user manual
You can find the free Raedian APP here:
Reviews
0/10
No reviews found
Add your reviewContact us for free for wallbox advice:
Call us003174-7002114
Email us[email protected]
Specifications
- Brand: Raedian
- Plug type: Type 2
- Number of Phases: 3 Phase
- Number of Amps per phase: 32A
- Maximum payload: 22 kW
- Charging cable length: Socket
- Display: No
- RFID Security: Yes
- Charging information: LED status
- Controllable via app: Yes (Raedian App)
- Load Balancing: Dynamic Load Balancing (optional)
- Connectivity: WiFi & 4G
- Connection with solar panels: Optional with CT-Kit
- Suitable for charge cards: Yes
- Automatic settlement: Yes
- Subscription: Optional
- Simcard: Optional
- Language manual: EN, DE, FR
- Colour(s): Space Grey
- Weight: 3.3 KG
- Sizes (excluding cables): 297 x 210 x 110 (mm)
- Material: Polycarbonate
- Protection degree: IP55
- Warranty period: 24 Months
