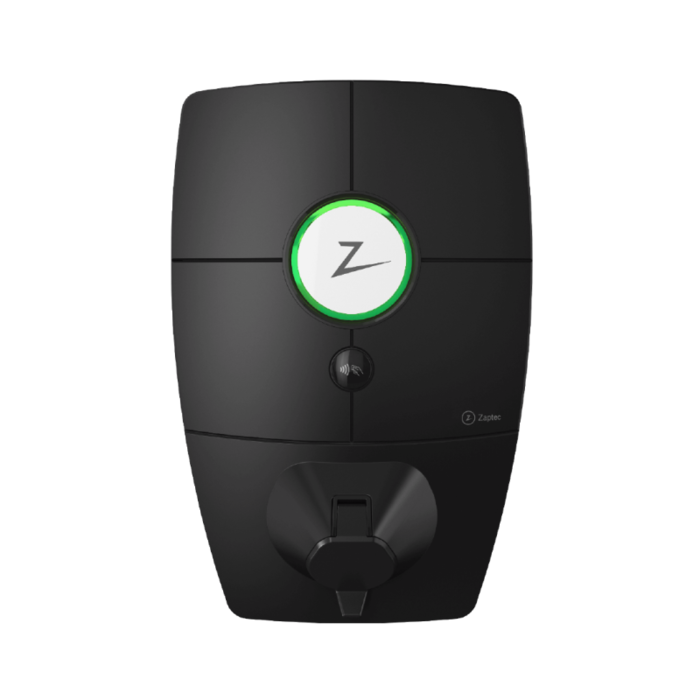

Zaptec Pro 22 included backplate (V2G/bi-directioneel ready) - 22kW

Zaptec Pro 22 kW

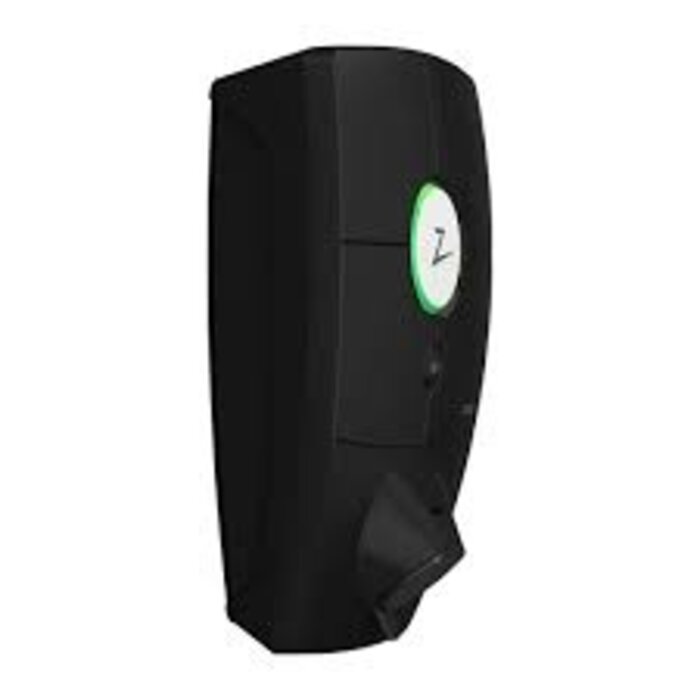

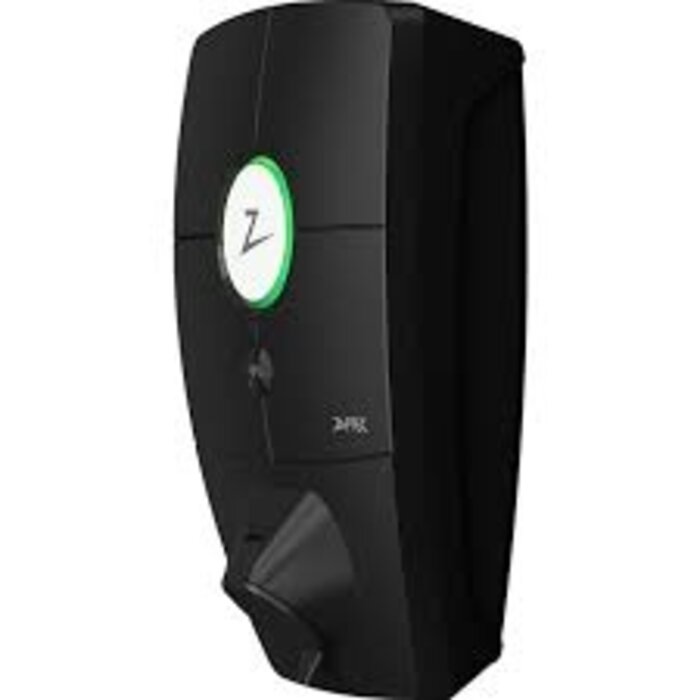

The Zaptec Pro is a charging station made for the business market. Such as apartment complexes, business parks or public car parks. Of course, it is also suitable for private use. It is therefore suitable for business, private and/or public use. Equipped with a charging capacity of up to 22 kW, via a type 2 socket connection. Can be operated anytime and anywhere online via Wi-Fi or 4G, using the free Zaptec APP. The Zaptec Pro is suitable for wall and pole mounting. A high-quality Norwegian product with a 5-year warranty! The Zaptec Pro is delivered without a backplate!

• This wallbox is suitable for all hybrid and electric cars with a type 2 plug.
• Maximum charging capacity: 22 kW / 3 x 32A
• Suitable for business, private and public use.
• Dynamic load balancing possible; this means the wallbox automatically takes household/company power consumption into account, thus preventing overloading.
• Dynamic load balancing is only possible over Wi-Fi via the Tibber Pulse. A wired connection is therefore not possible.
• Multichargepoint load balancing; Unlimited number of Zaptec Pro that can be connected to each other and distribute power consumption via active load balancing.
• Suitable for flat belt mounting; making it easy to install with multiple charging stations through the branching of the flat belt.
• Free Zaptec APP; this app allows you to remotely control and monitor/read your Zaptec Pro wallbox. Via the app, you can use the following features, among others:
  - Gain insight into your charging session and monitor speed
  - Track your charging history
  - Lock the cable in the charger
  - Control accessibility for friends and/or family.

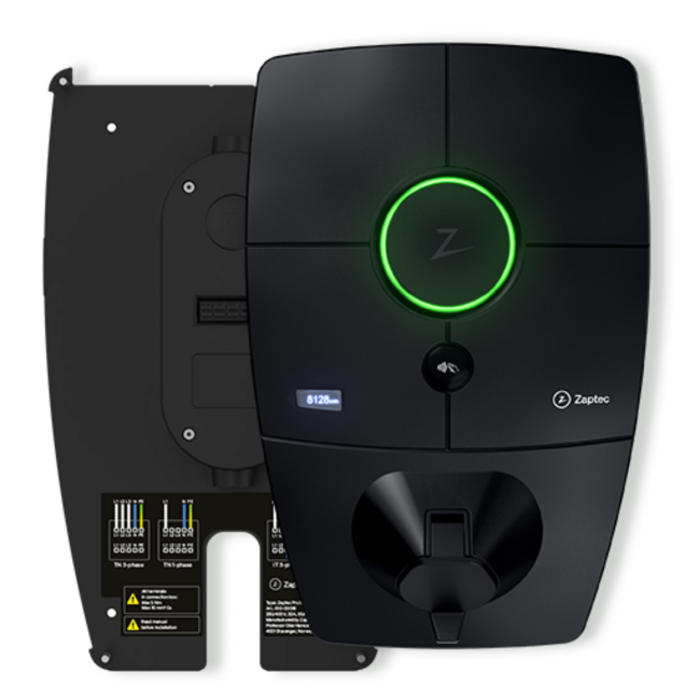

• Note: The Zaptec Pro is supplied with a backplate as standard
• This wallbox features a socket connection for a type 2 plug.

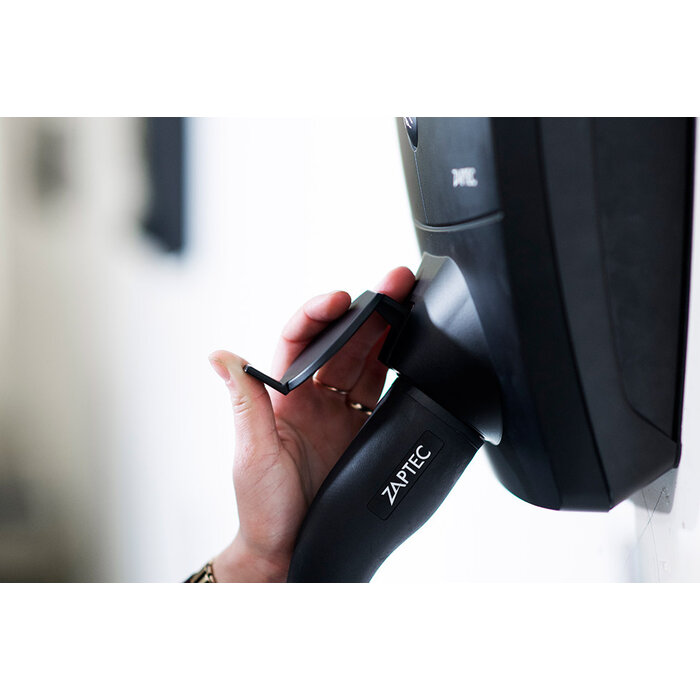

• Features a "lock function", making the charger also usable as a charging post with a fixed charging cable.
• Built-in MID certified meter; which is mandatory for business settlement.

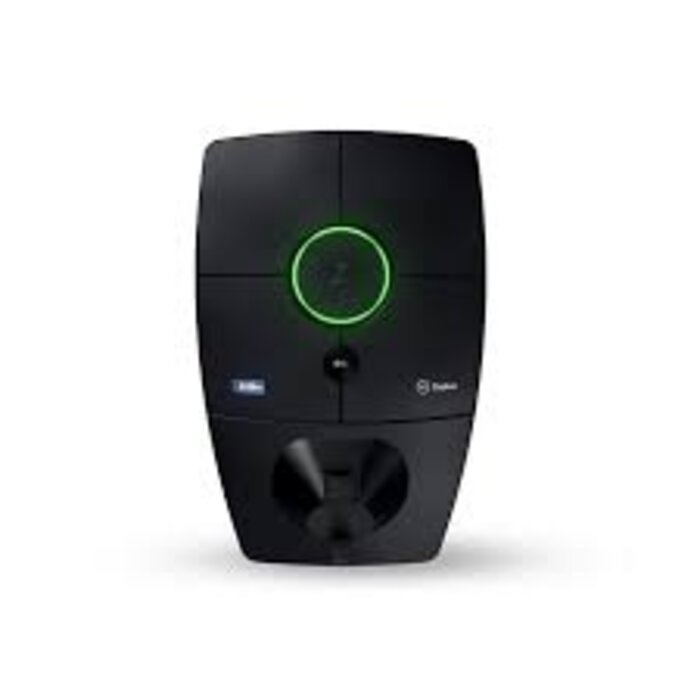

• LED status indication; the charging status is displayed via the LED circle on the front of the Zaptec Pro.
• Zaptec Portal; Installers and owners of Zaptec chargers easily keep track of their own installations/chargers in the Zaptec Portal. In it, you add charging stations, see the charging history, perform updates, monitor and change configurations, etc.
• Communication protocol Central System: OCPP 1.6J cloud-to-cloud. If the Zaptec Pro will be used as a public charging station, this system ensures that the charging station communicates with a central management system.
• Wi-Fi and 4G connectivity.
• Dimensions: 25.8 x 11.2 x 39.2 cm (L x W x H)
• Weight: 5 KG
• Made of plastic in the colour black.
• This wallbox comes with a multilingual installation and user manual as standard.

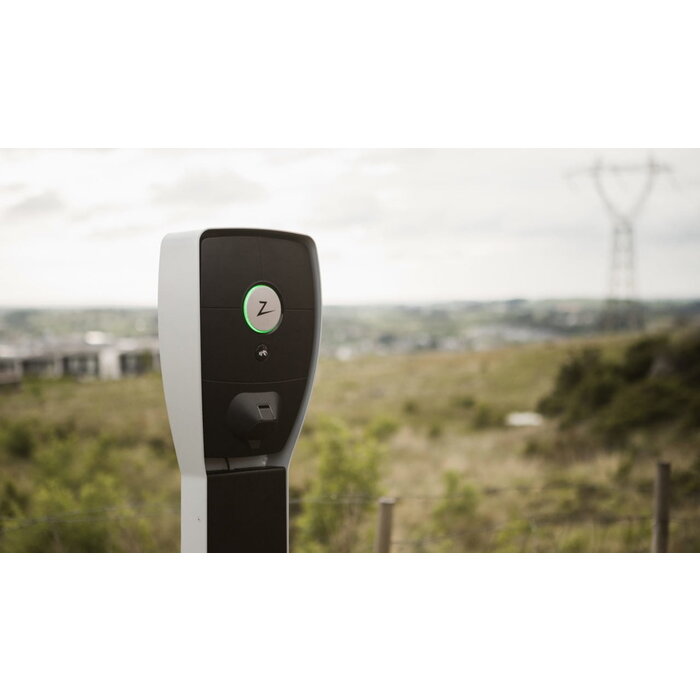

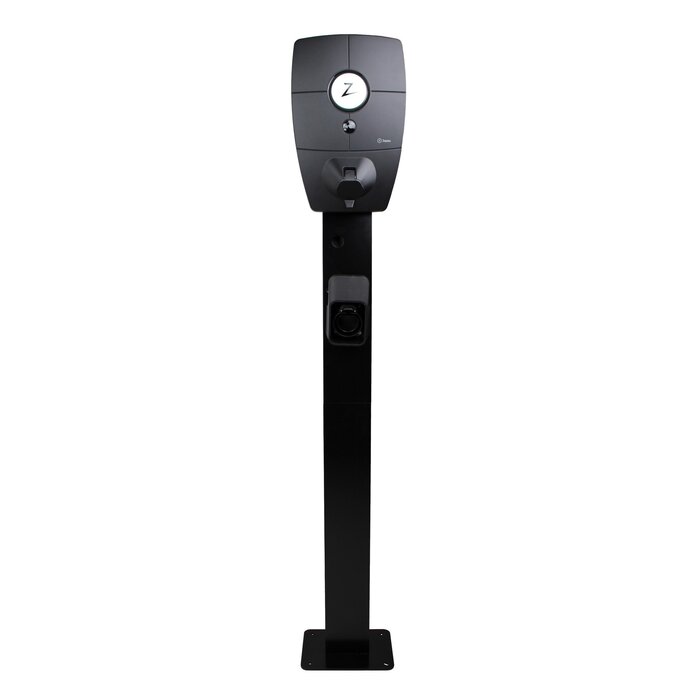

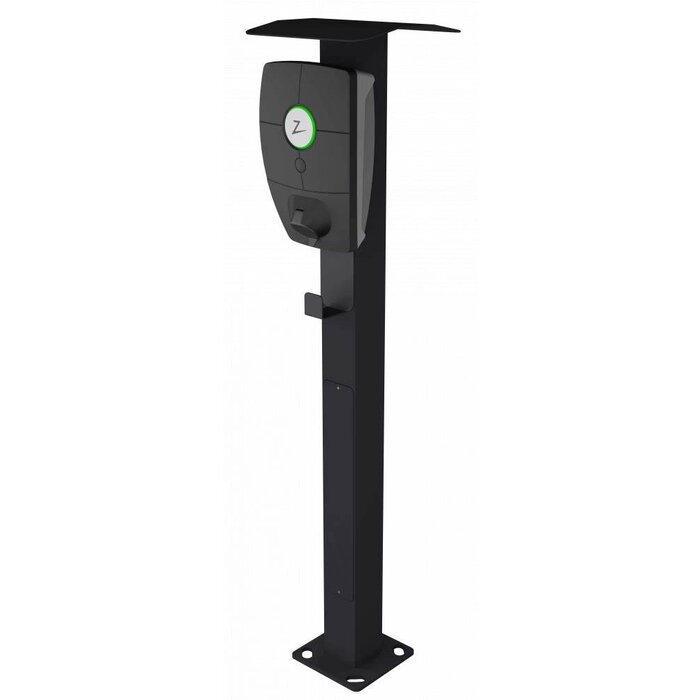

• Wall and pole mounting possible.
• Degree of protection IP54 / IK10: suitable for outdoor use
• European A-quality; a solid and high-quality Norwegian product.
• 5-year warranty.

Zaptec Pro 22 kW wallbox installation

When installing a Wallbox Pulsar 11 kW EV charger, you actually have 2 choices;
1) You can install the Zaptec Pro 22 kW ev charger yourself
2) Let a charging station-installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, you will need a power cable for this 22 kW charging station. In this case, that is a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside. If you want to activate dynamic load balancing, you will need the Tibber Pulse with it. Because it only connects via Wifi, you don't need a data cable.
Have you also checked whether you still have enough space in your fuse box? The earth leakage circuit breaker takes up 4 modules, as does the Tibber pulse, so an expansion box is often required.
For specific charging station installation instructions, please refer to the manual(s) below.
