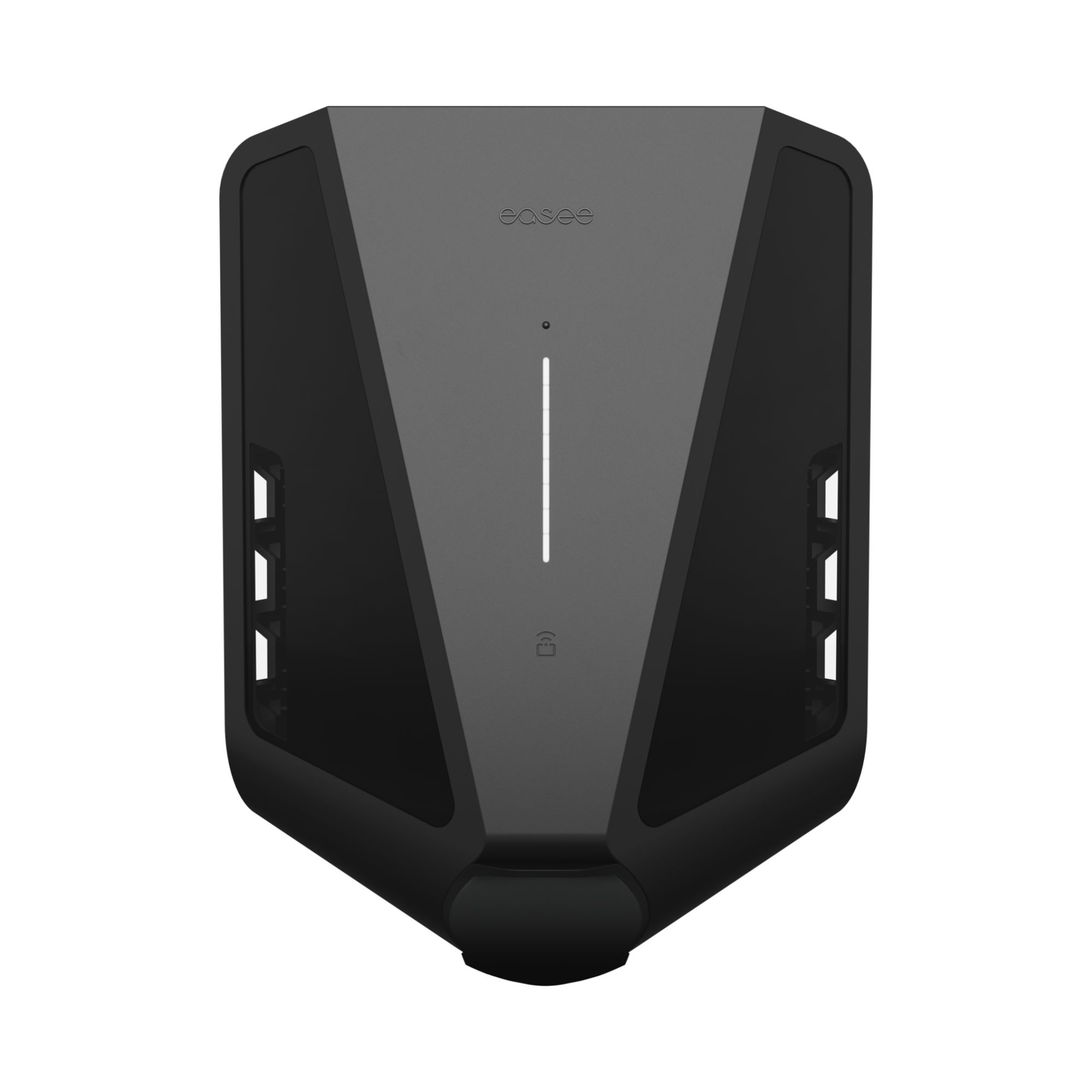

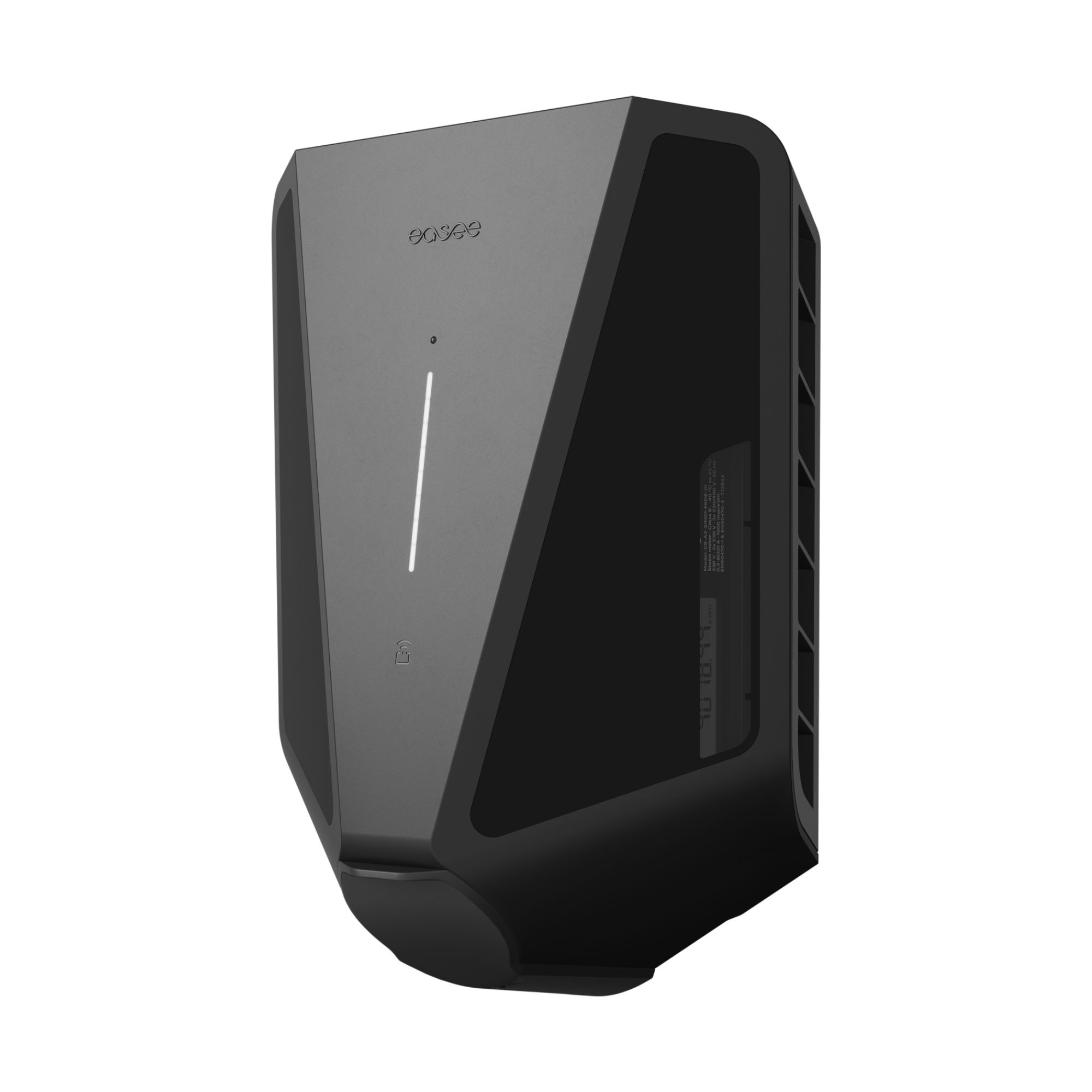

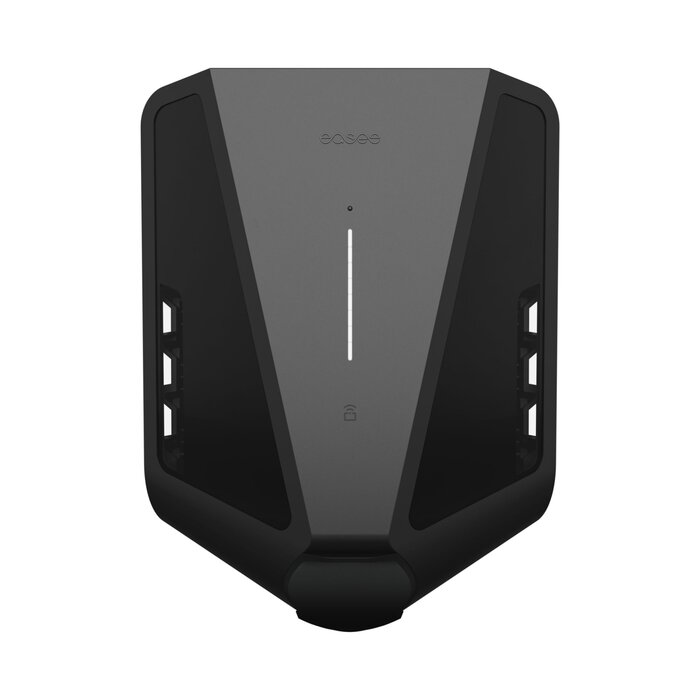

Easee Charge Max 22 kW - type 2 socket - EV charger

Easee Charge Max

The Easee Charge Max is a EV charger of the Easee brand. It has a smart and compact design developed in Norway. Features a charging capacity of Max to 22 kW, by a type 2 socket. Anytime and anywhere online via Wi-Fi or 4G, using the Easee APP. Dynamic load balancing is optional by the use of the Easee Equalizer. Suitable for business settlement and all charge cards. A Scandinavian quality product with a 3-year warranty.

• This EV Charger is suitable for all hybrid and electric cars with a type 2 plug.
• Maximum charging capacity: 22 kW / 3 x 32A
• Suitable for business and private use.

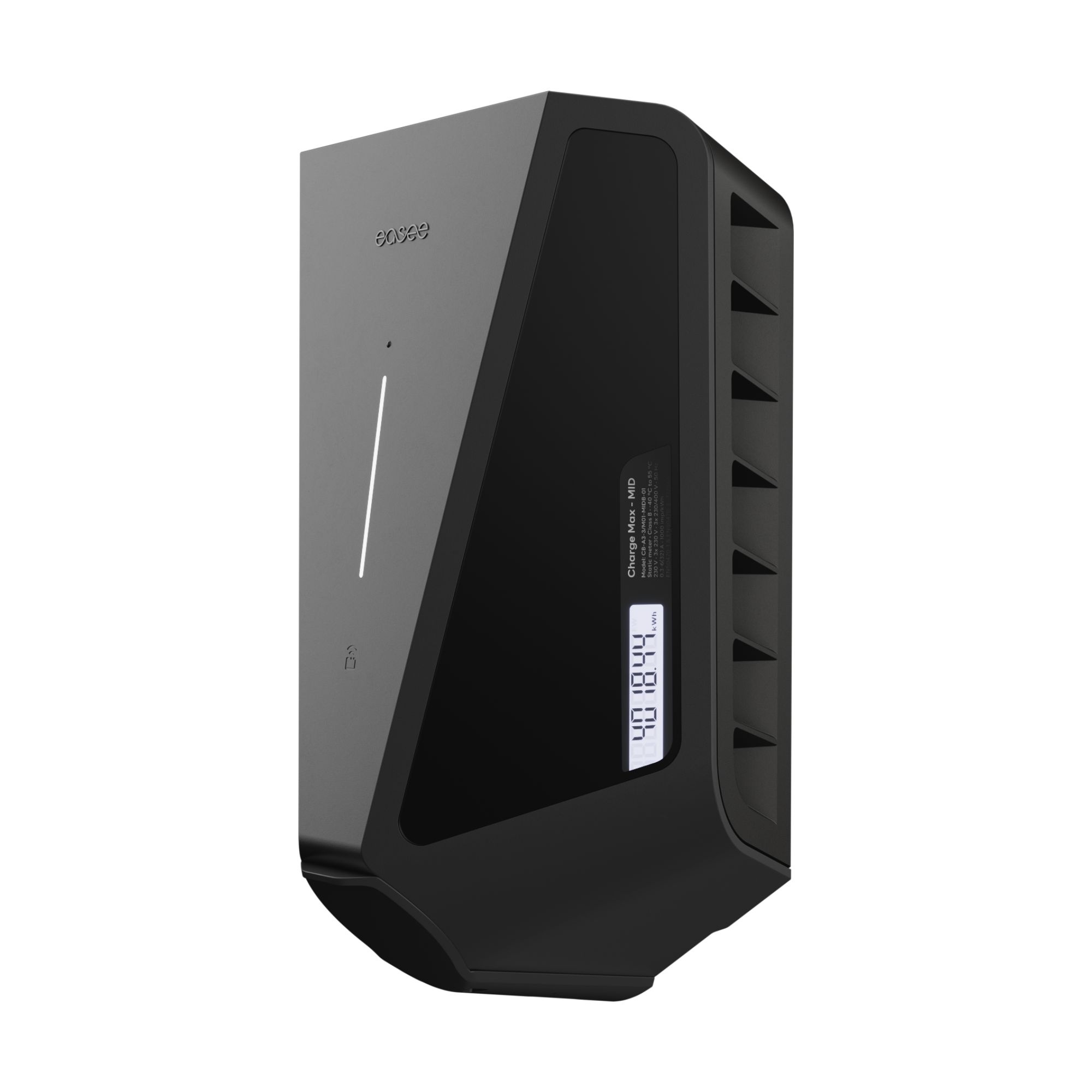

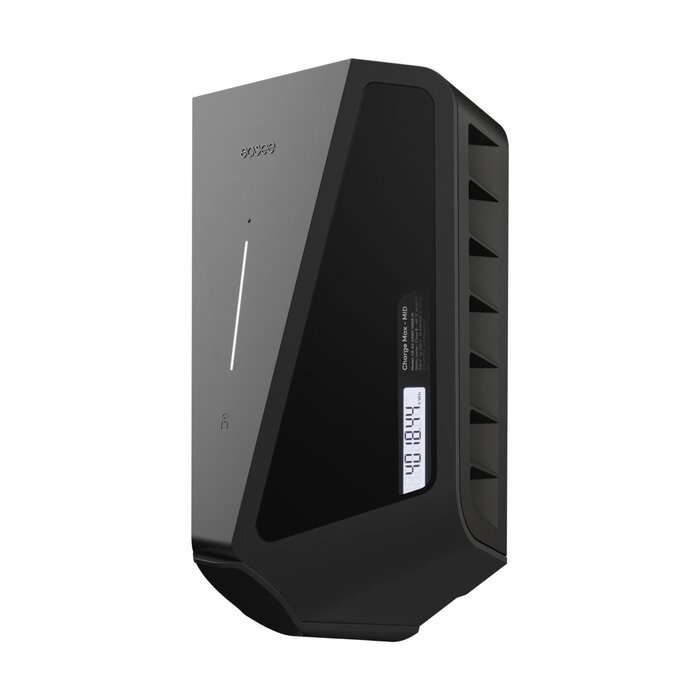

• Features built-in MID approved energy meter: Easily calculate and manage your charging costs with your employer, all according to EU directives for measuring instruments.
• This energy meter features MID Class B (±1%) according to EN 50470-3.
• Dynamic load balancing (optional via the Easee Equalizer); this means that the EV Charger automatically takes into account the power consumption of the household/company, thus preventing overloading.
• Only charge your self-generated solar power using the Easee Equalizer (optional).
• Charge with the new Easee Phase Balancing technology, in which it is possible to automatically switch between 1 phase and 3 phase charging. This depends on the amount of current, which is available per phase. This only works with the optional Easee Equalizer
• Free Easee APP; this app allows you to remotely control and monitor/read your Easee Charge Max EV Charger. Via the app, you can use the following features, among others:
  - Gain insight into your charging session and monitor speed
  - Track your charging history
  - Lock the cable in the charger
  - Control accessibility for friends and/or family.

• Easily charge your car with solar energy from solar panels or other renewable sources. This only works with the Easee Equalizer
• This EV Charger features a socket connection for a type 2 plug.
• Features a "lock function," making the charger also usable with a fixed charging cable.
• Includes DC 6mA ground fault protection, protection against over -& underload, overheating and short circuit.

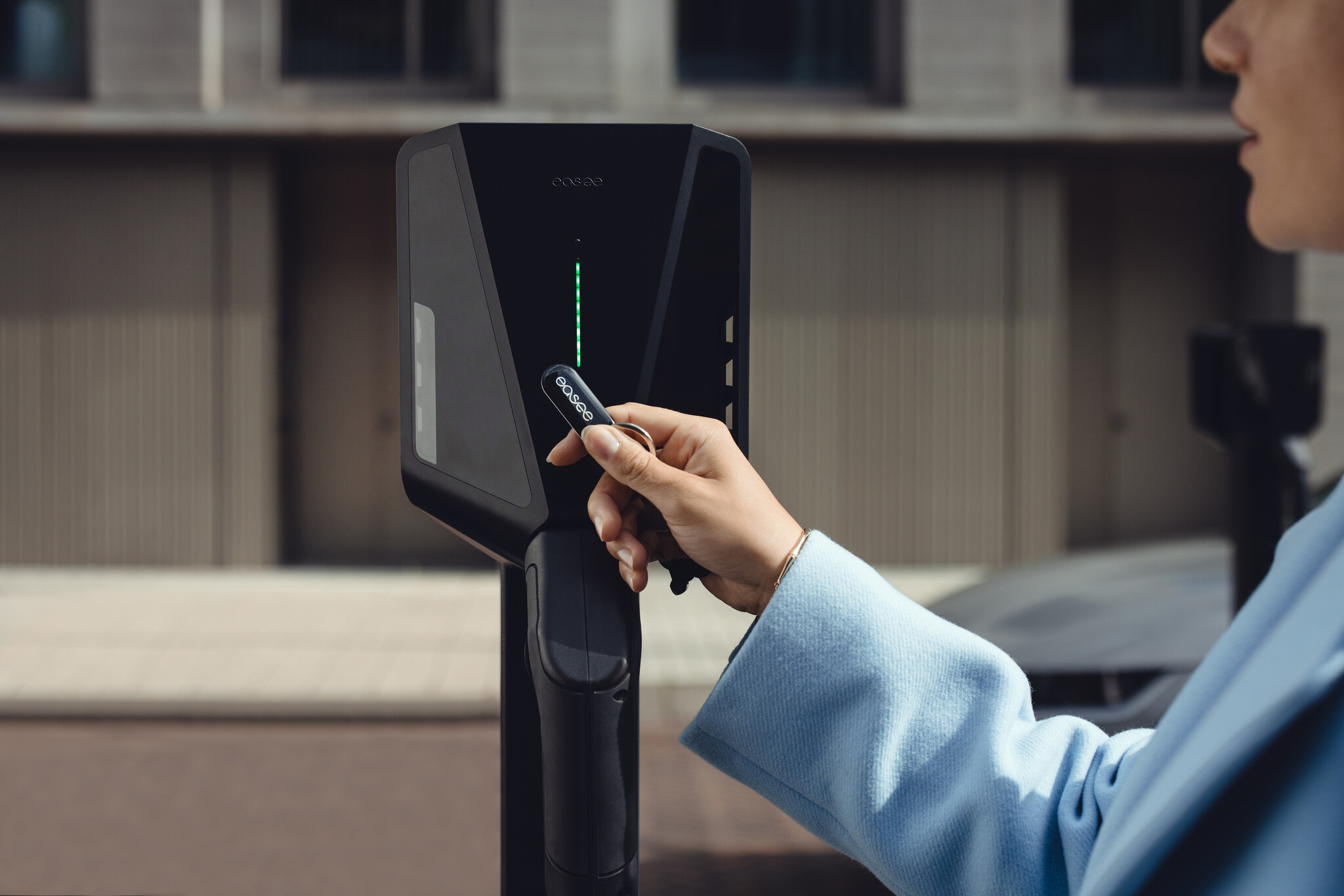

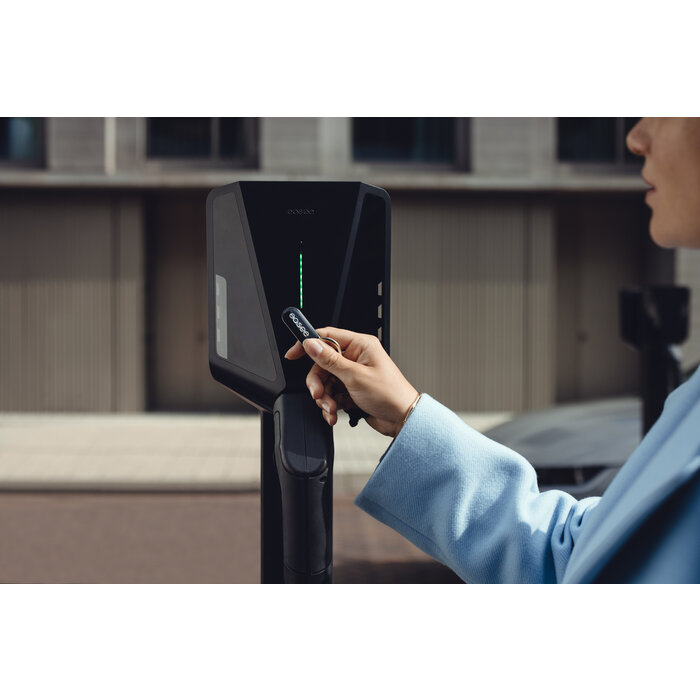

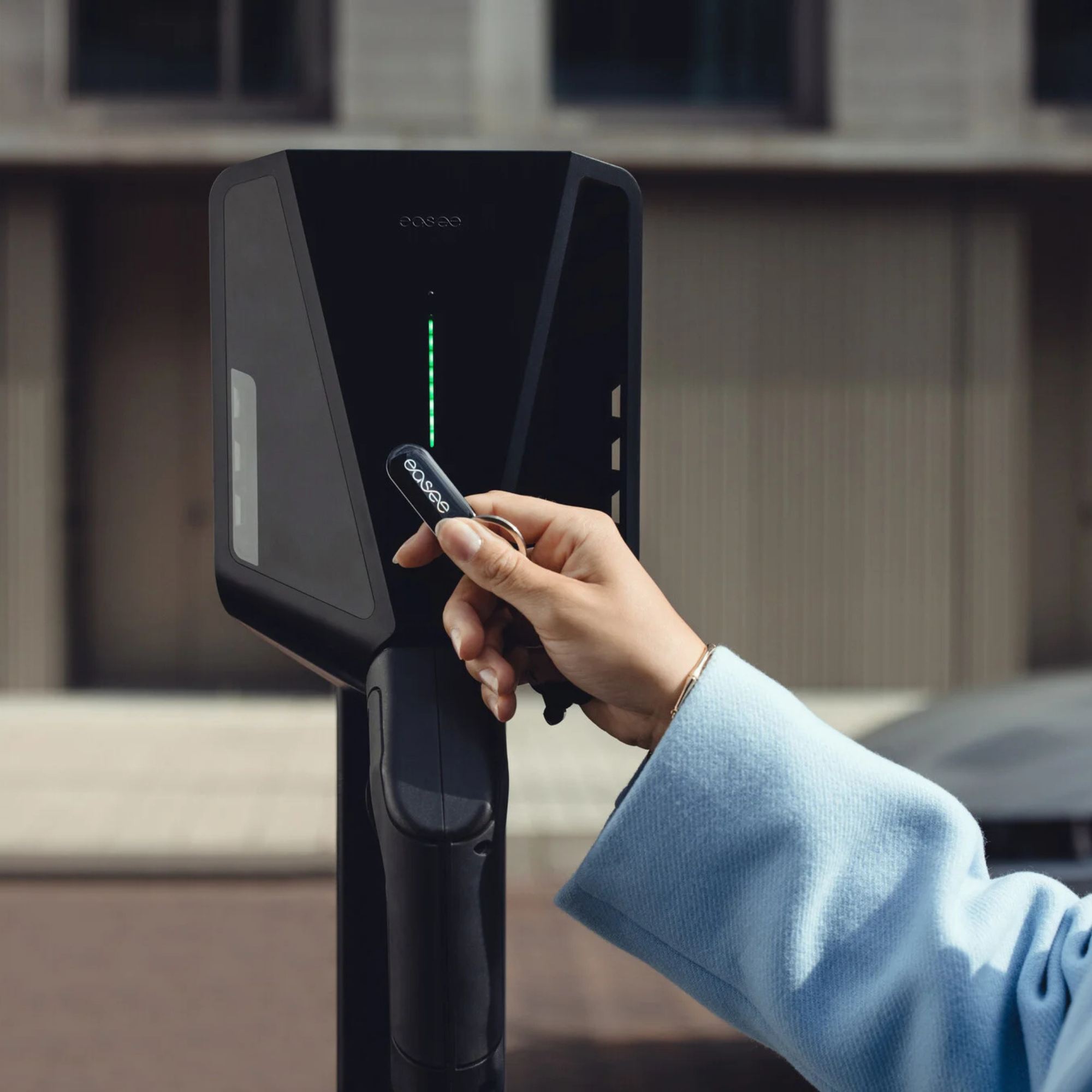

• Plug & Charge or authorization via RFID security; in order to prevent unauthorized use.
• Power Sharing; possibility to connect Infinitely many Easee Charge Max chargers to one connection.
• Free back office choice (sim-lock free).
• Central System communication protocol: OCPP 1.6J cloud-to-cloud
• Wi-Fi and 4G connectivity.
• Dimensions: 25,6 x 19,3 x 10,6 cm (h x w x d)
• Weight: 1,6 KG
• Made of plastic in the color asphalt black.
• This wallbox comes standard with a multilingual installation and user manual.

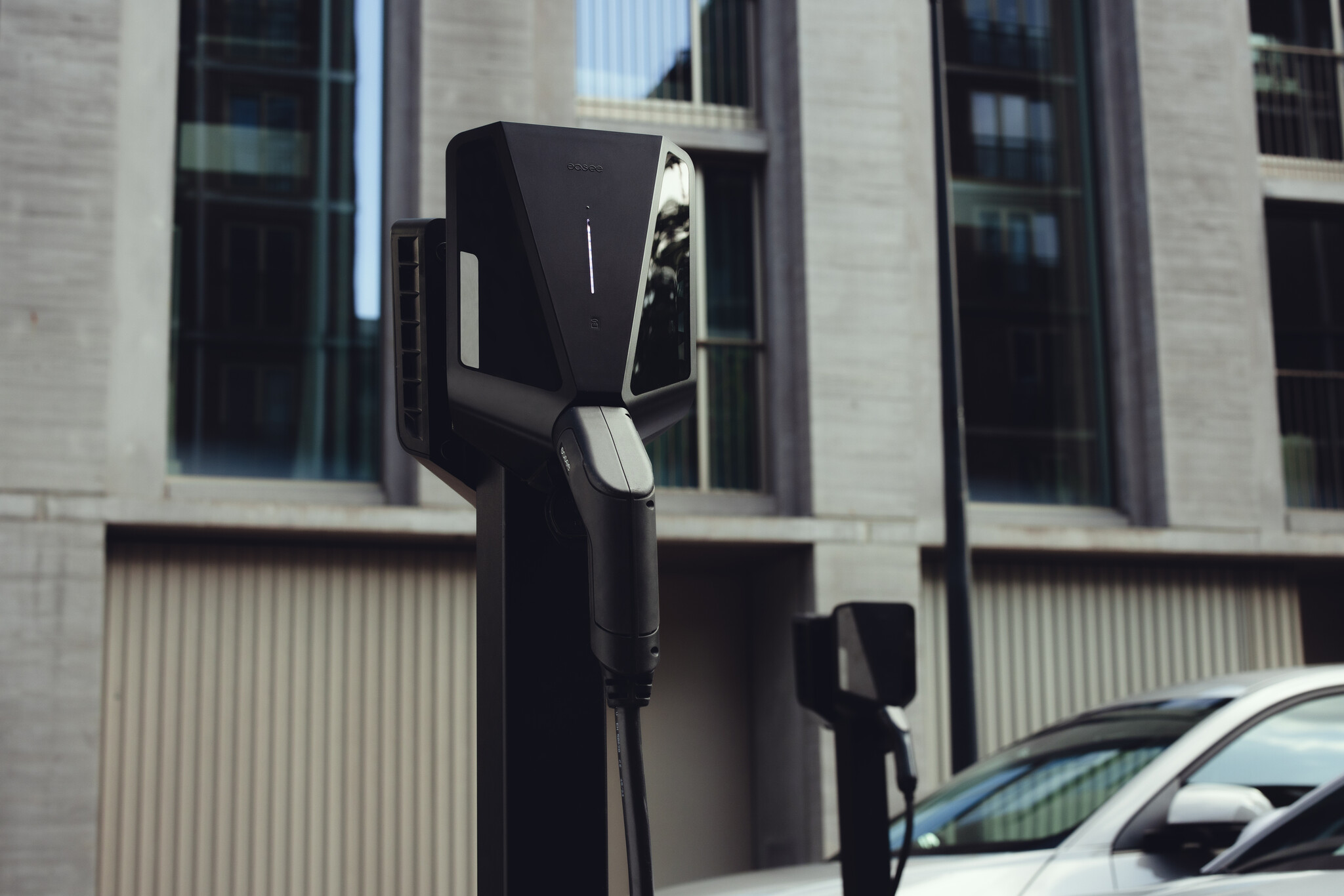

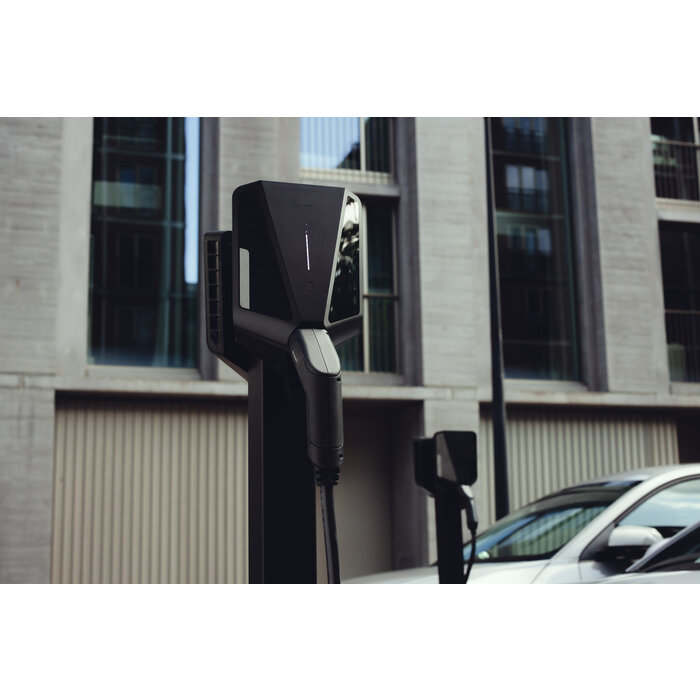

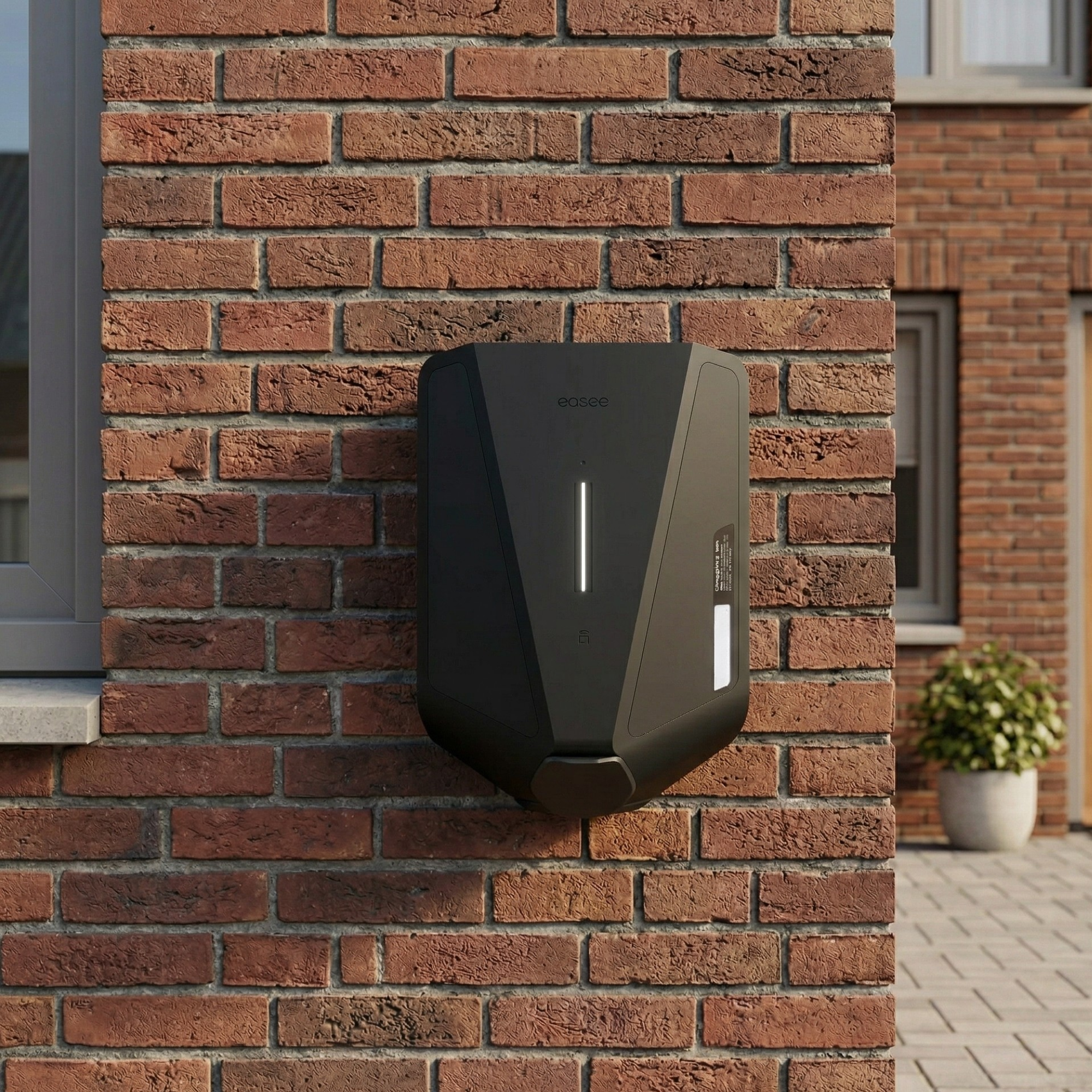

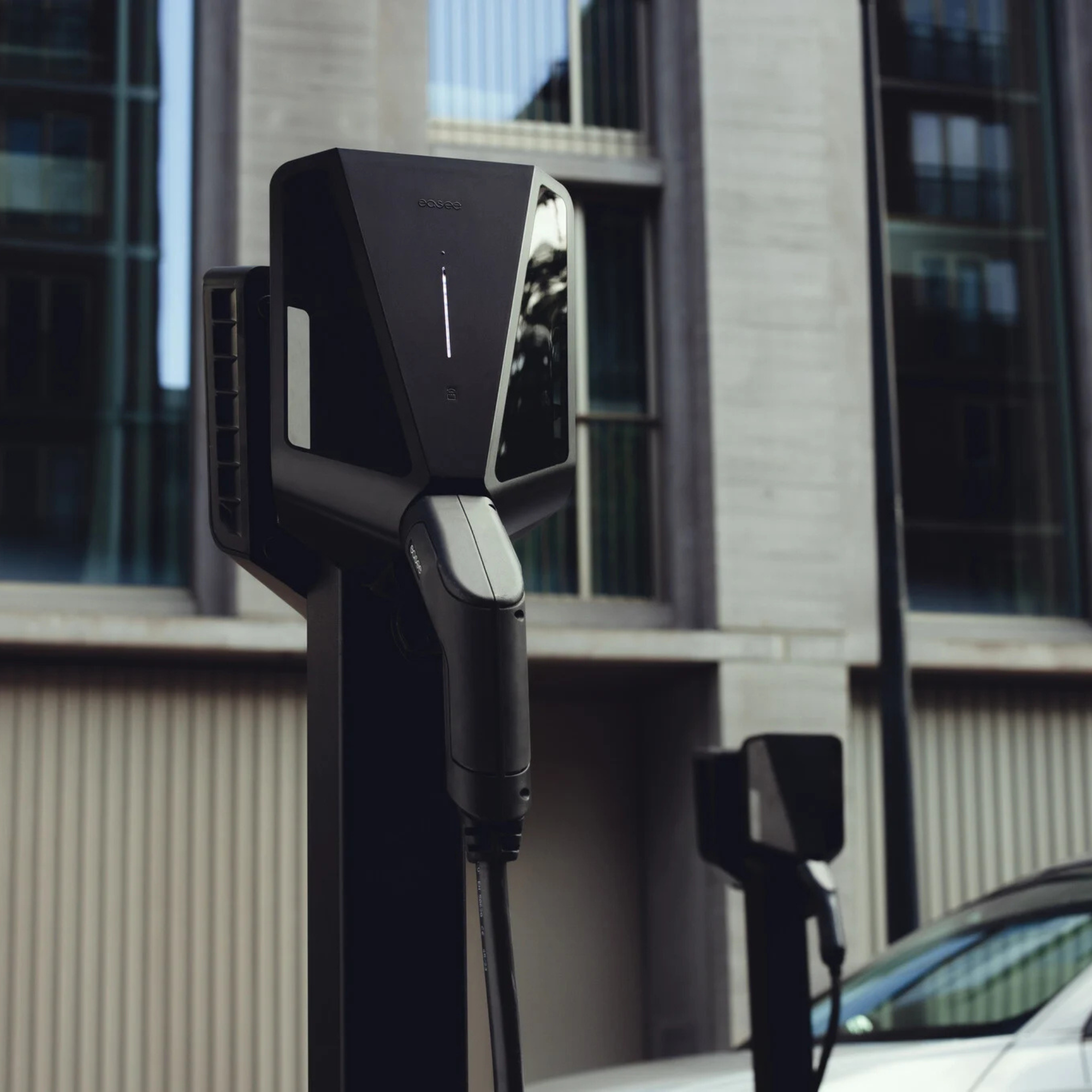

• Wall and pole mounting possible.
• Easy to install due to the plug-and-play design of the Easee Charge Max
• Protection grade IP54 / IK8: Suitable for outdoor use.
• European A-quality; a solid and high-quality Norwegian product.
• 5-year warranty.

Easee Charge Max 22 kw wallbox installation

When installing an Easee EV charger, you actually have 2 choices;
1) You can install the Easee Charge Max 22 kw ev charger yourself
2) Let a charging station-installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, you will need a power cable for this 22 kw charging station. In this case, that is a 5x2,5mm2 YMVK cable for inside / in conduit or a 4x2,5mm2 YMVK-as ground cable for outside. If you want to activate dynamic load balancing, you will need the Easee Equalizer with it. Because it only connects via Wifi, you don't need a data cable.
Have you also checked whether you still have enough space in your fuse box? The earth leakage circuit breaker takes Max 4 modules, as does the Easee Charge Max, so an expansion box is often required.
For specific charging station installation instructions, please refer to the manual(s) below.

Want to know more about the  Easee Charge Max EV Charger?
- Installation manual (in English)
- User manual (in English)
- Datasheet (in English)
