Besen Pro 11 kW with Dynamic Load Balancing - type 2 - 5 meter cable - EV Charger
- Excellent price / quality ratio
- Very high water resistance with IP66
- Suitable for business use
- With Dynamic Load Balancing
- Free cable hook included
- No solar-only charging capability
- No connection to P1 port
Besen Pro 11 kW EV Charger
Are you looking for a cheap and nice charging station that is suitable for business use and also features Dynamic Load balancing? Then this new Besen Pro 11 kW is the wallbox you are looking for. The charging station has a 3-phase 11 kW charging capacity. Compact and sleek design. Only a small display, on which you can read all necessary charging information and a start/stop button on the side of the wallbox. In addition, all information can also be read in the free EVSE Master app. Good value for money and 2 year warranty.
- This EV charger is suitable for all hybrid and electric cars with a type 2 plug.
- Maximum charging power: 11 kW (3x 16A) on 3-phase.
- Suitable for business and private use.

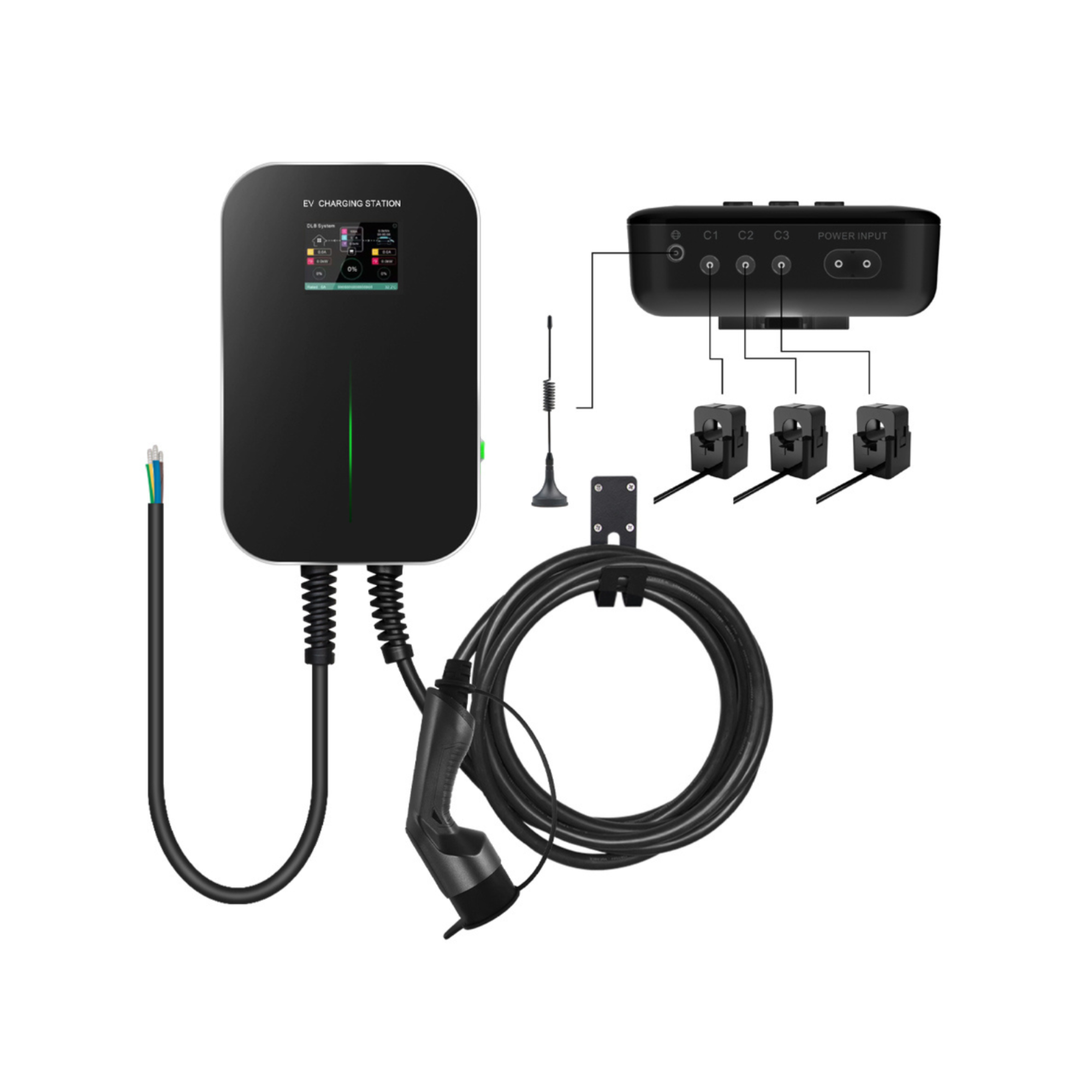

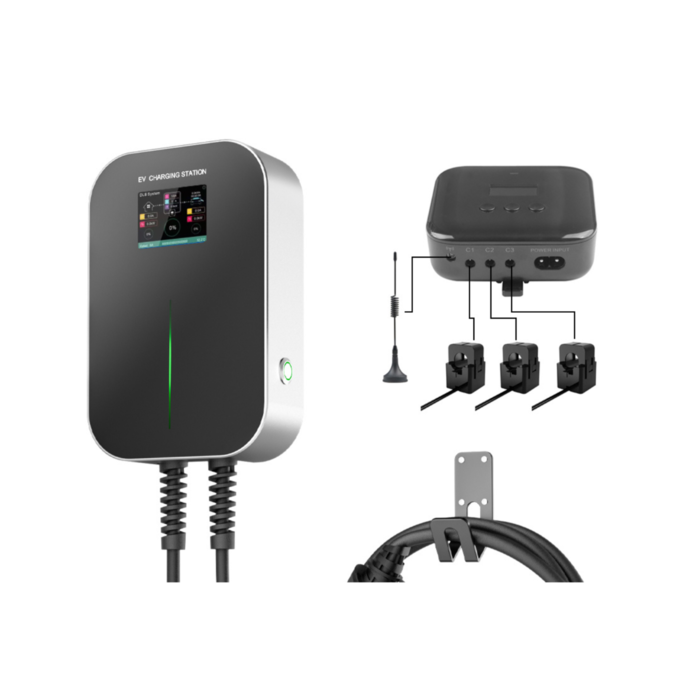

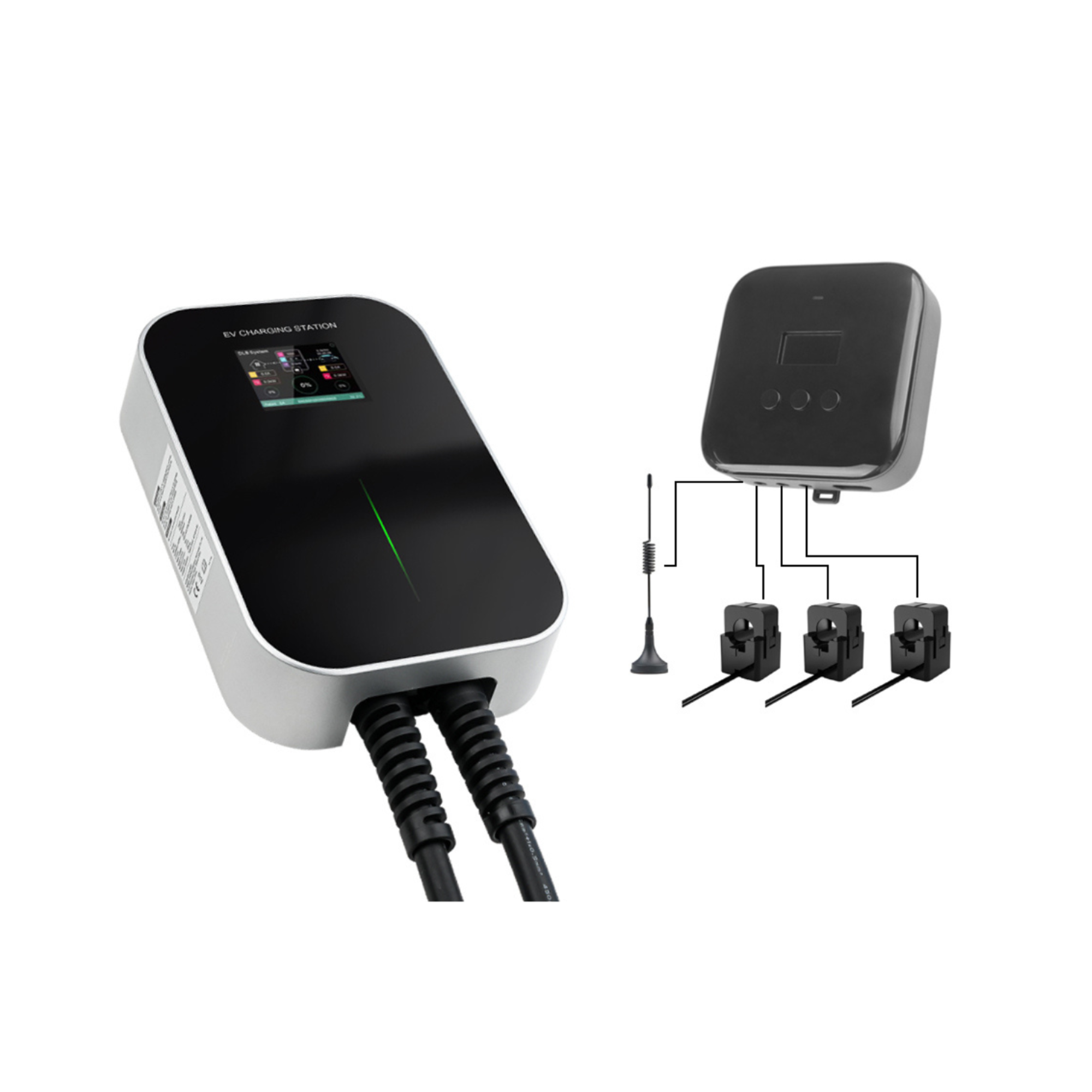

- Dynamic Load Balancing: so the wallbox automatically consumes only the available power and you do not have to take your other electrical appliances into account.
- This wallbox features a fixed 5 meter charging cable with a type 2 plug.
- Contains a color display, which shows the following information: real-time power, real-time voltage, temperature, consumed power, charging icon, charging time, end time and power in Amps.
- OCPP 1.6 for backend communication: The Open Charge Point Protocol (OCPP) controls. communication between a EV charger and a backend system.
- Including EVSE Master App: Get insight into your charging sessions through your phone.
- Start/stop button on the side.
- Features RFID security.
- Includes DC 6mA ground fault protection, protection against over -& undercharging, overheating and short circuit.
- Free cable hook included: To hang the charging cable over.
- Dimensions: 30 x 20 x 7 cm (h x w x d).
- Weight: 8 KG
- Made of polycarbonate.
- Colors: brushed metal on the side with black front.
- This wallbox comes standard with drilling template, mounting step-by-step plan and multilingual manual.
- Degree of protection IP66: suitable for outdoor use.
- 2 year warranty.
Business charging
This charge post is suitable for business charging. The charge post can be connected to any provider for this purpose. We can also arrange this for you in combination with a Maxem subscription. For only € 5 euros excl. VAT per month, we will arrange your business charging, please note that you purchase this from us in advance. Choose your rate per kWh and we will charge it to your employer. Every charge card is accepted, so whether you have lease plan, MKB fuel or ANWB energy, we will arrange it for you. Order your Maxem charge management subscription now.
Besen Pro 11 kW wallbox installation
When installing a Besen Pro 11 kW EV charger, you actually have 2 choices;
1) You can install the Besen 11 kW wallbox yourself
2) Let a charging station installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, for this 11 kW charging station, use a 5x2.5mm2 YMVK cable for inside / in conduit or a 4x2.5mm2 YMVK-as ground cable for outside. Besides the right power cable, you also have check whether you still have enough space in your fuse box. Because the earth leakage circuit breaker takes up 4 modules and a possible 3 phase kwh meter also takes up 4 modules, so an expansion box is often needed.
For specific charging station installation instructions, please refer to the manual(s) below.
Want to know more about this Besen Pro 11 kW wallbox?
- Installation & user manual
- User manual EVSE Master app
- 3-phase wallbox wiring
- Datasheet
You can find the free EVSE Master App here:
- Brand: Besen
- Article number: BC-11KW-APP-DLM
- Plug type: Type 2
- Number of Phases: 3 Phases
- Number of Amps per phase: 16A
- Maximum payload: 11 kW
- Charging cable length: 5 meter
- Display: Yes
- RFID Security: Yes
- Charging information: By display and app
- Controllable via app: Yes (EVSE Master App)
- Load Balancing: Dynamic
- Connectivity: WiFi & Bluetooth
- Connection with solar panels: No
- Suitable for charge cards: Yes
- Automatic settlement: No
- Subscription: No, no monthly costs
- Simcard: -
- Language manual: NL & EN
- Colour(s): Black and brushed metal
- Weight: 8 KG
- Sizes (excluding cables): 30 x 20 x 7 cm (h x w x d)
- Material: Polycarbonate
- Protection degree: IP66
- Warranty period: 24 months
