- Excellent price / quality ratio
- Very high water resistance with IP66
- Display shows charging information
- Beautiful design
- Free cable hook included
- No adjustable load capacity (*only with the app version)
- No solar-only charging capability
- Control via 3G/4G not possible

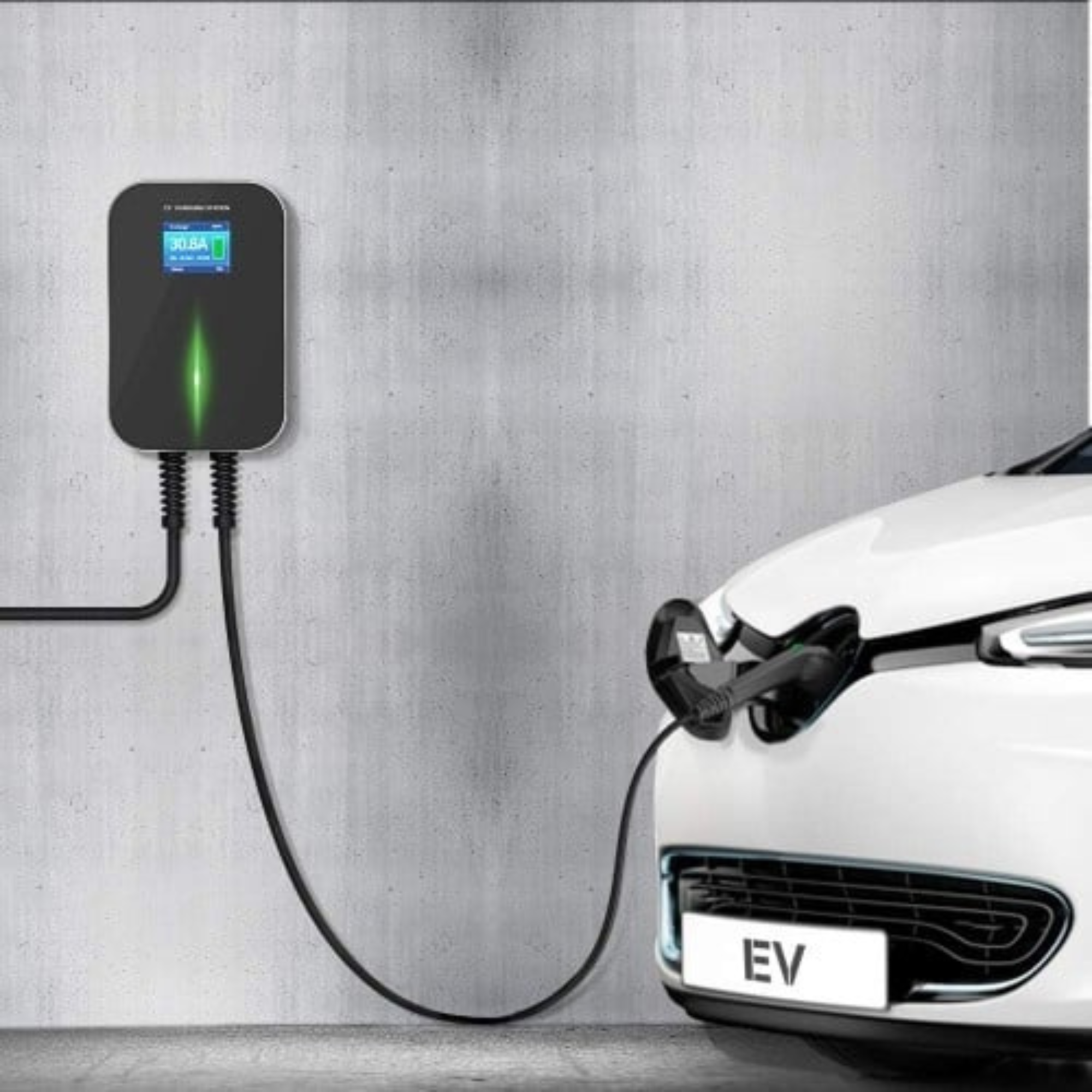

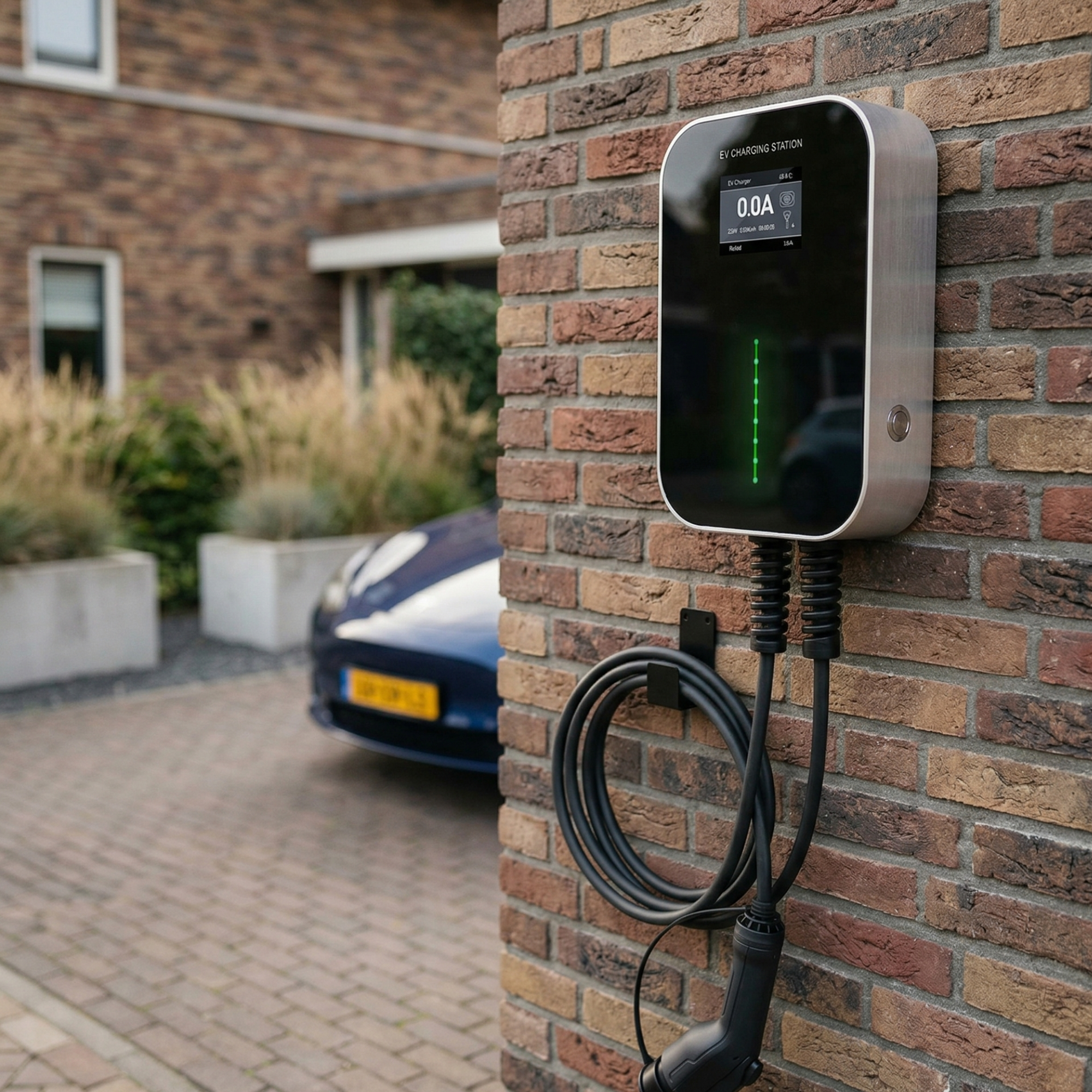

Besen 11 kW with charging cable
You want an easy way to charge your hybrid and/or electric car. Then this Plug & Charge model from Besen is the EV charger you are looking for. Optionally available with RFID security or app control. The charging station has a 3-phase 11 kW charging capacity. Compact and sleek design. Only a small display, on which you can read all necessary charging information and a start/stop button on the side of the wallbox. Good value for money and 2 year warranty.
- This EV charger is suitable for all hybrid and electric cars with a type 2 plug.
- Maximum charging power: 11 kW (3x 16A) on 3-phase
- Basic version is Plug & Charge model; meaning it charges the maximum power immediately upon connection to the car.
- Optional versions:
1) RFID security; to prevent unauthorized use (free 5 RFID tags included).
2) App control; the free EVSE Master App allows you to remotely control and read your Besen wallbox.Through the app, you can use the following functions, among others:
- Gain insight into the current charging session
- Overview of your loading history
- Adjust the charging capacity
- Lock and unlock the charger via a PIN code
- Scheduling delayed charging sessions.
3) White version; Plug & Charge with touchscreen display - This wallbox features a fixed 5 meter charging cable with a type 2 plug.
- Contains a color display, which shows the following information: real-time power, real-time voltage, temperature, consumed power, charging icon, charging time, end time and power in Amps.
- Start/stop button on the side.
- Includes DC 6mA ground fault protection, protection against over -& undercharging, overheating and short circuit.
- Free cable hook: To hang the charging cable over.
- Dimensions: 30 x 20 x 7 cm (h x w x d).
- Made of polycarbonate.
- Colors: brushed metal on the side with black front.
- This wallbox comes standard with drilling template, mounting step-by-step plan and multilingual manual.
- Degree of protection IP66: suitable for outdoor use.
- 2 year warranty.
Besen 11 kW wallbox installation
When installing a Besen 11 kW EV charger, you actually have 2 choices;
1) You can install the Besen 11 kW wallbox yourself
2) Let a charging station installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, for this 11 kW charging station, use a 5x2.5mm2 YMVK cable for inside / in conduit or a 4x2.5mm2 YMVK-as ground cable for outside. Besides the right power cable, you also have check whether you still have enough space in your fuse box. Because the earth leakage circuit breaker takes up 4 modules and a possible 3 phase kwh meter also takes up 4 modules, so an expansion box is often needed.
For specific charging station installation instructions, please refer to the manual(s) below.
Want to know more about this Besen wallbox?
- Installation & user manual
- User manual EVSE Master app (*app version)
- 3-phase wallbox wiring
- Datasheet
You can find the free EVSE Master App here:
